32 41... Replacing level switch for Dynamic Drive fluid reservoir
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off pipe connections with plugs.
After installation:
- Fill and bleed hydraulic system. See 32 13 006 Bleeding Power Steering Unit .
- Check pipe connections for leaks
- If necessary, carry out initial operation for Dynamic Drive. See INITIALIZING DYNAMIC DRIVE .
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid
Observe country-specific waste-disposal regulations
- Detach fluid reservoir from holder, raise and if necessary remove sideways

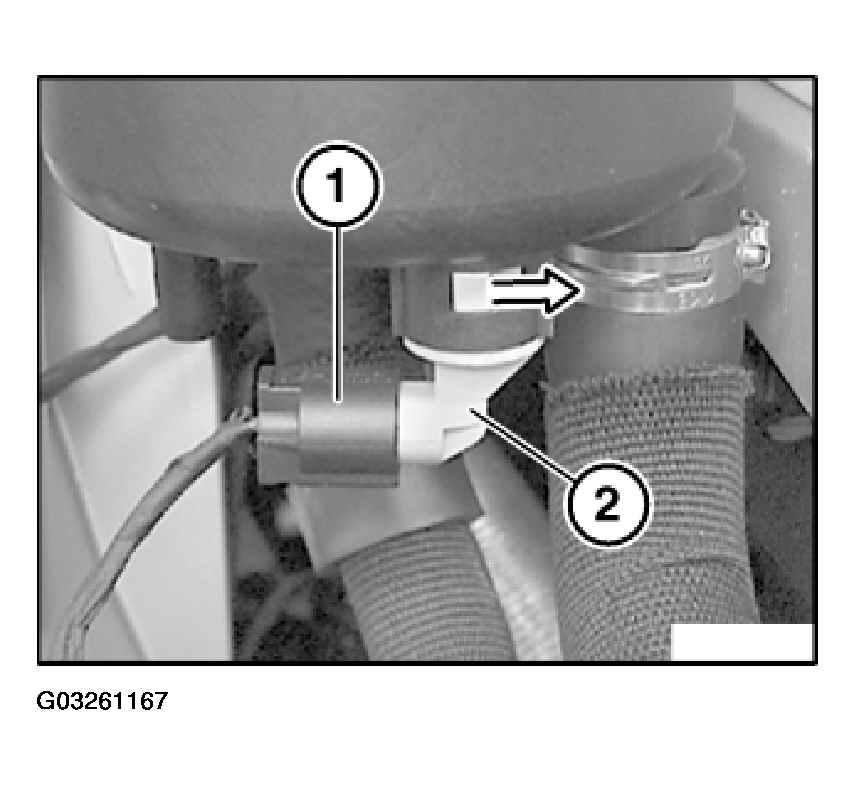

Disconnect connector (1).
Turn level switch (2) through approx. 45° and remove towards bottom.
