32 13 006 Bleeding power steering unit
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
After filling:
- Version with Dynamic Drive: Carry out initial Dynamic Drive operation. See INITIALIZING DYNAMIC DRIVE .
Necessary preliminary tasks:
- Thoroughly clean fluid reservoir and its immediate surroundings
- Open and remove fluid reservoir cap
NOTE:

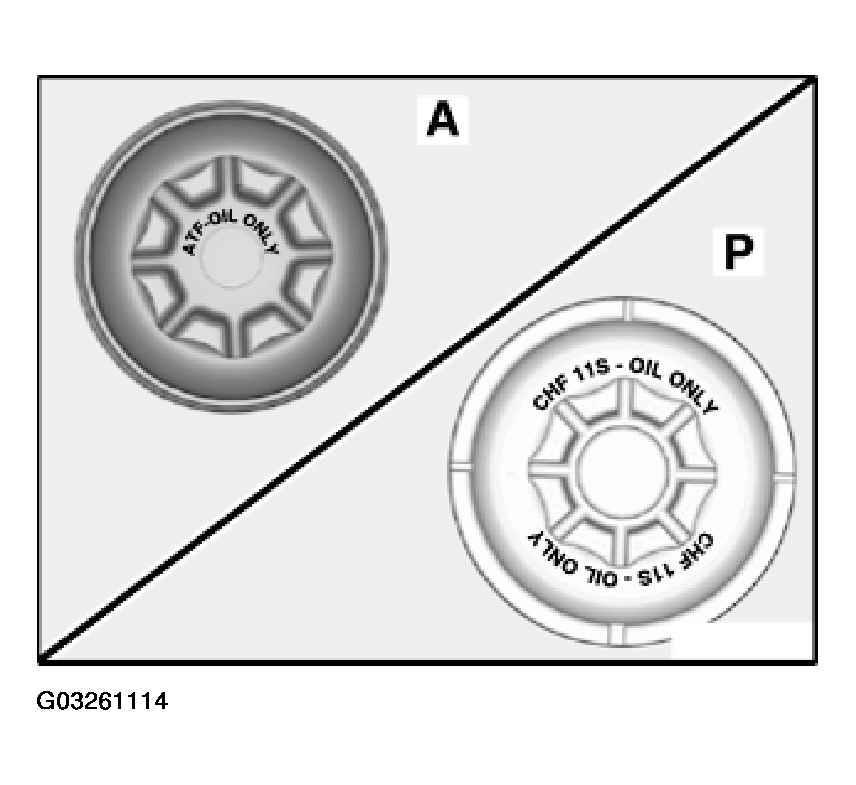

To avoid mix-ups when filling with hydraulic fluid, mark the fluid reservoirs or their caps with identification marks.
ATF Automatic transmission fluid
Pentosin CHF 11S
- Topping up when engine stationary:
- Top up fluid reservoir to "MAX" mark on dipstick. Hydraulic fluid: refer to OPERATING FLUIDS .
- Bleeding:
- Start engine.
- Turn steering wheel twice each as far as left and right lock.
- Oil level check with engine off:
- Check fluid level
- If necessary, top up hydraulic fluid to "MAX" level
Refer to OPERATING FLUIDS .
- Check:
- Check pipe connections for leaks
