32 43 010 Removing and installing / replacing control unit for active front steering
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection).
IMPORTANT:
Do not kink floor panelling under any circumstances!
After installation:
- Replacement only: Carry out coding with BMW scan tool.
- Replacement/coding only: Carry out adjustment for active front steering. See 32 10 005 Adjustment For Active Front Steering .
Necessary preliminary tasks:
- Remove right entrance strip. See 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .
- Remove right front seat. See SEATS - REPAIR INSTRUCTIONS .
- Disconnect battery negative lead. See 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
- If necessary, remove front right floor mat.
- Remove side trim in front right footwell. See 51 43 075 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON "A" PILLAR, RIGHT .
- Fold back front right floor trim.
- Remove kickplate in footwell in front of and next to control unit; if necessary, cut along specified lines with knife and secure later with adhesive tape

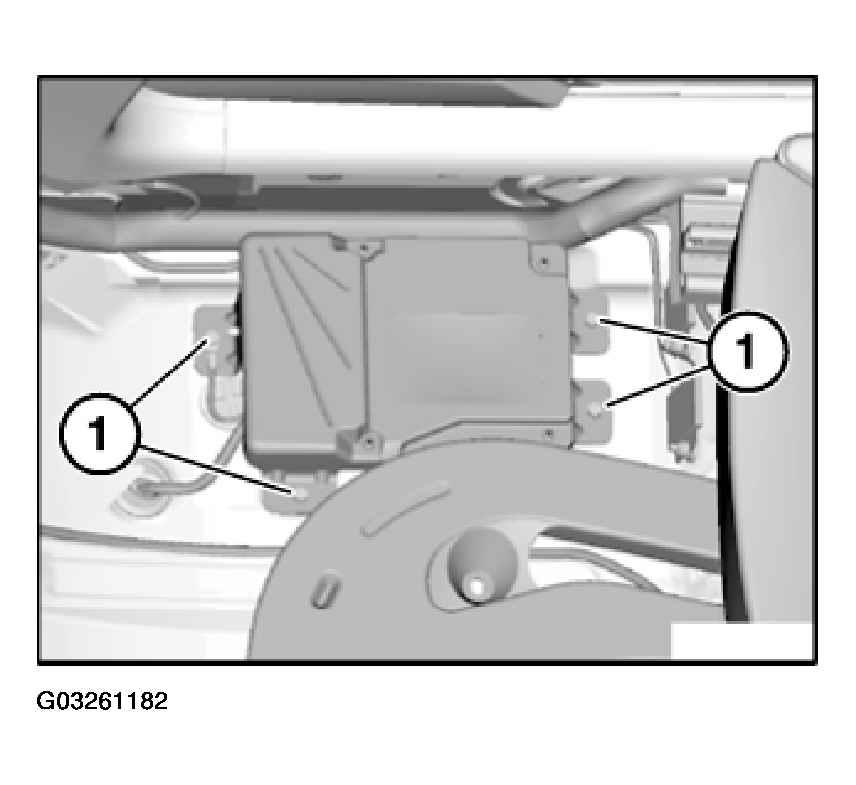

Release screws (1).
Tightening torque, see 32 43 1AZ in WHEEL & TIRES - TIGHTENING TORQUES .
Lay grounding cable to one side.
Installation:
Secure grounding cable as illustrated to retaining plate.
Raise active front steering control unit and turn over.

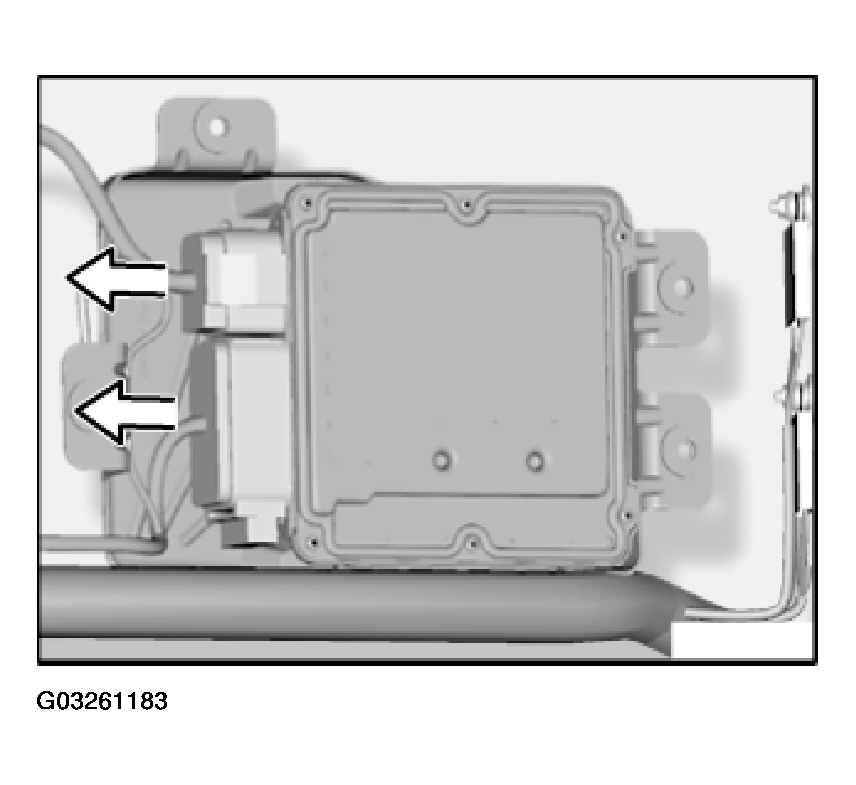

Unlock connector and remove.
Remove active front steering control unit.
