32 13 066 Replacing hydraulic steering gear (with active front steering)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal connections and lines immediately after removal with sealing plugs.
Seal connections and lines immediately after removal with sealing plugs.
Necessary preliminary tasks
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Remove underbody protection at front and rear. See FRONT UNDERBODY PROTECTION and REAR UNDERBODY PROTECTION .
- Remove COVER FOR STEERING ASSEMBLIES on left and right
- Remove TRACK ROD END ON BOTH SIDES FROM SWIVEL BEARING
- Remove lower section of steering spindle from steering gear. See UNIVERSAL JOINT WITH CORRUGATED TUBING (N55) or UNIVERSAL JOINT WITH CORRUGATED TUBING (N63) .
- Remove TRACK ROD END AT BOTH ENDS OF TRACK ROD
- Version with Dynamic Drive (F01/F02/F07):
- Remove FRONT ANTI-ROLL BAR
- Remove EXPANSION HOSE

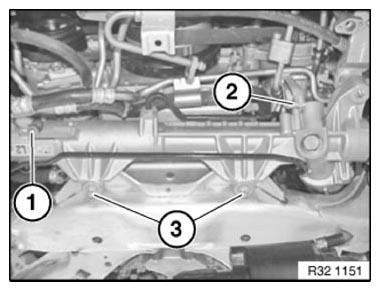

Slacken nut (1).
Tightening torque 32 41 7AZ .
Release screw (2) on bracket.
Tightening torque 32 41 7AZ .
Release screw (3).
Tightening torque 32 00 1AZ .

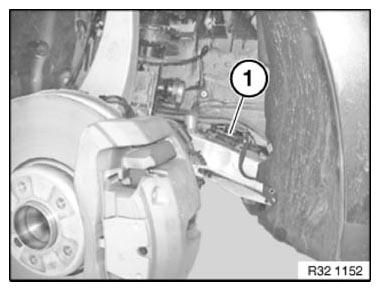

Unlock plug connections (1) and disconnect.
Pull hydraulic steering gear towards front a little.

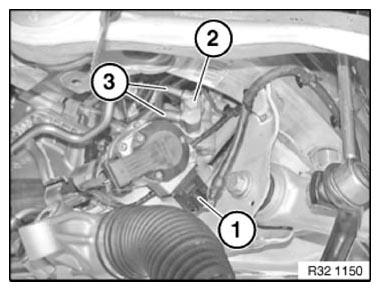

Unfasten plug connection (1) and disconnect.
Release screw (2) and remove lines (3) from hydraulic steering gear.
Tightening torque 32 41 5AZ .
Remove power steering gear in downward direction.
Replacement

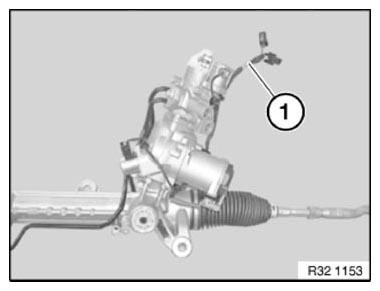

Modify wiring harness on hydraulic steering gear.
After installation
- Fill and bleed hydraulic system. See BLEEDING POWER STEERING UNIT or BLEEDING POWER STEERING (VERSION WITH DYNAMIC DRIVE) .
- Check pipe connections for leaks
- Perform alignment check. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITHOUT VEHICLE LOAD .
- Perform ADJUSTMENT FOR ACTIVE STEERING
- If necessary, carry out INITIAL OPERATION FOR DYNAMIC DRIVE (F01/F02/F07)
