32 31 020 Removing and installing/replacing lower section of steering column trim
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove TOP SECTION OF STEERING COLUMN CASING .
- Move steering column in "top" and "extended" position.

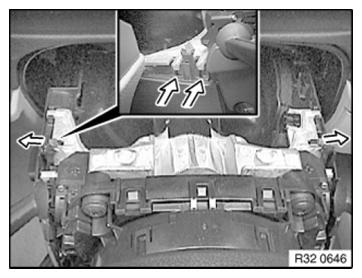

Press detent lugs outwards a little and unclip steering column trim downwards.
Installation:
Align steering column trim by means of detent lugs to steering column and press up as far as it will go.
Press steering column trim on both sides together a little and then press upwards completely until detent lugs snap into place.
Check installation position, correct if necessary.
