32 31 003 Removing and installing/replacing upper section of steering column trim

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

Move steering column in "bottom" and "extended" position.

IMPORTANT: Risk of damage!
Unclip steering column shroud (1) at side with special tool 00 9 323 .

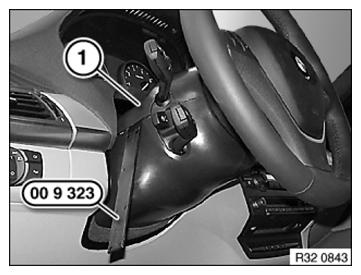

Fig 1: Disconnecting Steering Column Shroud At Side With Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt steering column trim (1) towards front.

Unclip steering column gap cover (2) from steering column trim (1).

Installation:

Tilt steering column trim towards rear, align by way of locks to lower section (of steering column trim) and press down.

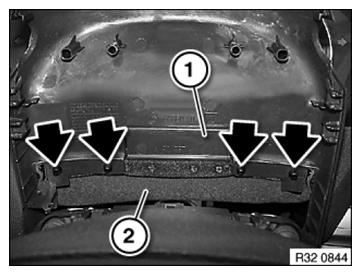

Fig 2: Disconnecting Steering Column Gap Cover From Steering Column Trim

Courtesy of BMW OF NORTH AMERICA, INC.
