61 13 050 Removing and installing/replacing power distribution box in passenger compartment
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INFORMATIONS for handling vehicle battery.
Necessary preliminary work
- Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT .
- Detach both battery cables for negative terminal in F03.
- Remove RIGHT GLOVE BOX WITH HOUSING .

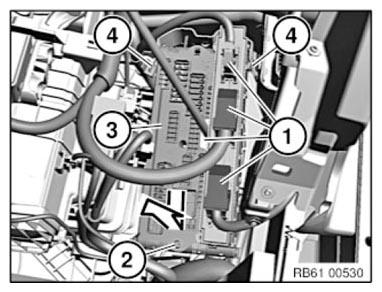

Disconnect plug connection (1) from power distribution box in passenger
compartment (3) and junction box electronics.
Release screw (2).
Tightening torque 61 14 1AZ .
Feed out power distribution box in passenger compartment (3) from retaining clips (4) in direction of arrow.
UNLOCK AND DISCONNECT PLUG CONNECTIONS behind.
Replacement:
- Modify JUNCTION BOX ELECTRONICS .
- Modify fuses.
