61 35 107 Removing and installing or replacing junction box electronics

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

Necessary preliminary work

Partially remove POWER DISTRIBUTION BOX FOR PASSENGER COMPARTMENT .

Release screws (1) on junction box electronics (2).

Tightening torque 61 14 2AZ .

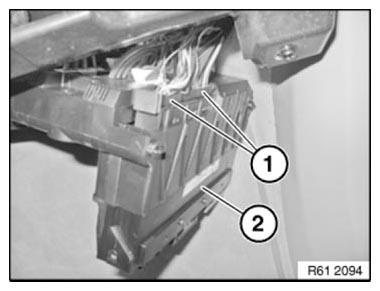

Fig 1: Identifying Junction Box Electronics And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Pull junction box electronics (2) out of bracket.

Installation note:

Make sure junction box electronics and plug connections (1) are correctly seated.

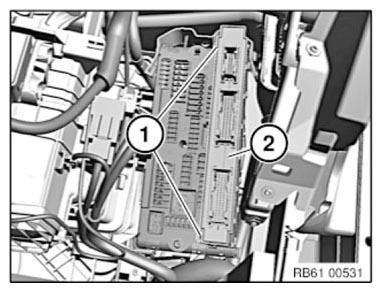

Fig 2: Identifying Junction Box Electronics With Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .

Delete transport mode.
