61 31 006 Removing And Installing/Replacing Fixture For Steering Column Stalk
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Move wheels into straight-ahead position and do not alter this position during the repair work.
With steering wheel removed, do not under any circumstances turn/twist fixture for steering column stalk!
Necessary preliminary tasks:
- Remove steering wheel . See 32 33 010 REMOVING AND INSTALLING/REPLACING SPORT STEERING WHEEL .
- Remove top section of steering column casing. See 32 31 003 REMOVING AND INSTALLING/REPLACING UPPER SECTION OF STEERING COLUMN TRIM .
- Remove lower section of steering column trim . See 32 31 020 REMOVING AND INSTALLING / REPLACING LOWER SECTION OF STEERING COLUMN TRIM .

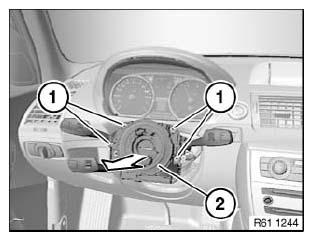

Release screws (1).
Pull back fixture for steering column switch (2) in direction of arrow.
Disconnect plug connections behind and remove fixture for steering column stalk (2).
Installation:
Carry out steering angle sensor adjustment. See 61 31 996 Carrying Out Steering Angle Sensor Adjustment .
On vehicles with active front steering, steering angle sensor adjustment is performed by means of initial operation / adjustment of active front steering.
Replacement:
- Remove volute spring cassette .
- Carry out vehicle programming/coding NOTE:
- If replacement of the steering column switch cluster is initiated via Progman, the steering column switch cluster is coded indirectly via the DSC control unit
- If coding is cancelled, first adjust the steering angle sensor; this makes a brand-new steering column switch cluster coding-compatible again if necessary
- Then code the DSC control unit again
- Carry out steering angle sensor adjustment
. See 61 31 996 Carrying Out Steering Angle Sensor Adjustment .NOTE:
- If steering angle sensor adjustment is cancelled, first code the DSC control unit
- Then adjust the steering angle sensor again
- Vehicles with active front steering:
- Steering angle sensor adjustment is performed by means of initial operation/adjustment of active front steering
- If necessary, proceed in accordance with instructions
