Steering Column: Removal

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery.

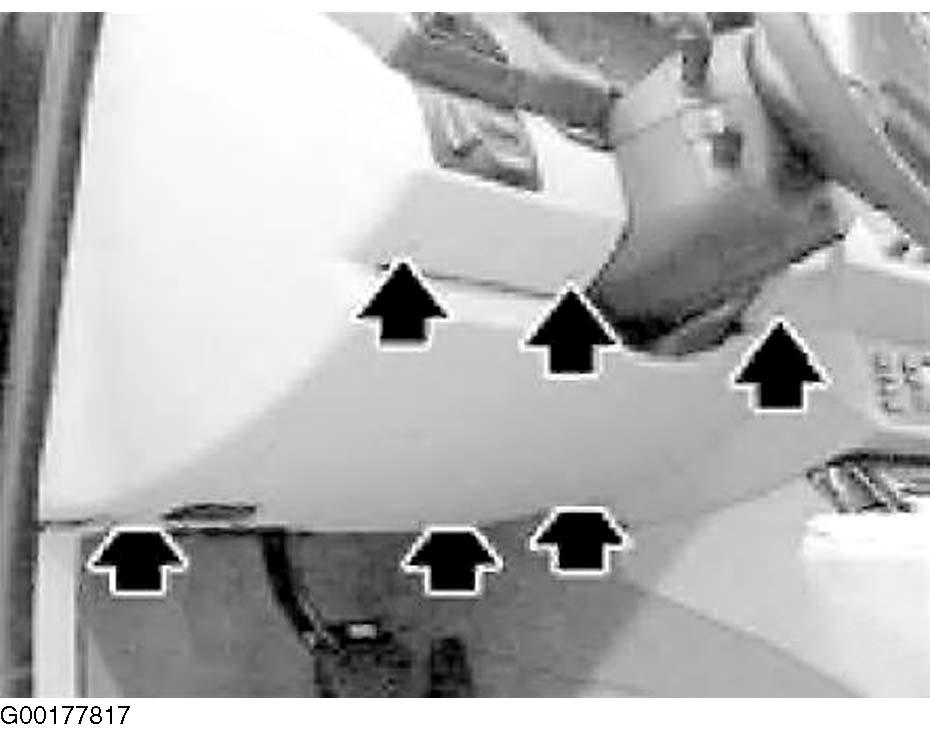

  2. Unfasten screws, disconnect plug from gong and On-Board Diagnosis and remove instrument panel trim. See Figure .
  3. Remove steering wheel. See STEERING WHEEL  .
  4. Remove lower section of steering column trim. See STEERING COLUMN TRIM (LOWER SECTION)  .
  5. Remove upper section of steering column trim. See STEERING COLUMN TRIM (UPPER SECTION)  .
  6. Take off collar (1). See Fig 1 .
  7. Remove cable for interlock from steering lock if necessary. See Figure .
  8. Unfasten screws, detach plug and remove stalk fixture for steering column. See Fig 2 .
  9. Remove clamping bolt. Press down on steering spindle. See Fig 3 .
  10. Loosen shear off screw with chisel or mill off screw head. See Fig 4 .
  11. Unfasten all lines leading to steering column from their respective brackets. Release screw and unlock connector from ignition starter switch and remove. See Fig 5 .
  12. Unfasten screws (3) for mechanical adjustment. See Fig 6 .
  13. Unfasten screws on support tube. Remove steering column. See Fig 7 .
Fig 1: Taking Off Collar
G00175068Courtesy of BMW OF NORTH AMERICA, INC.

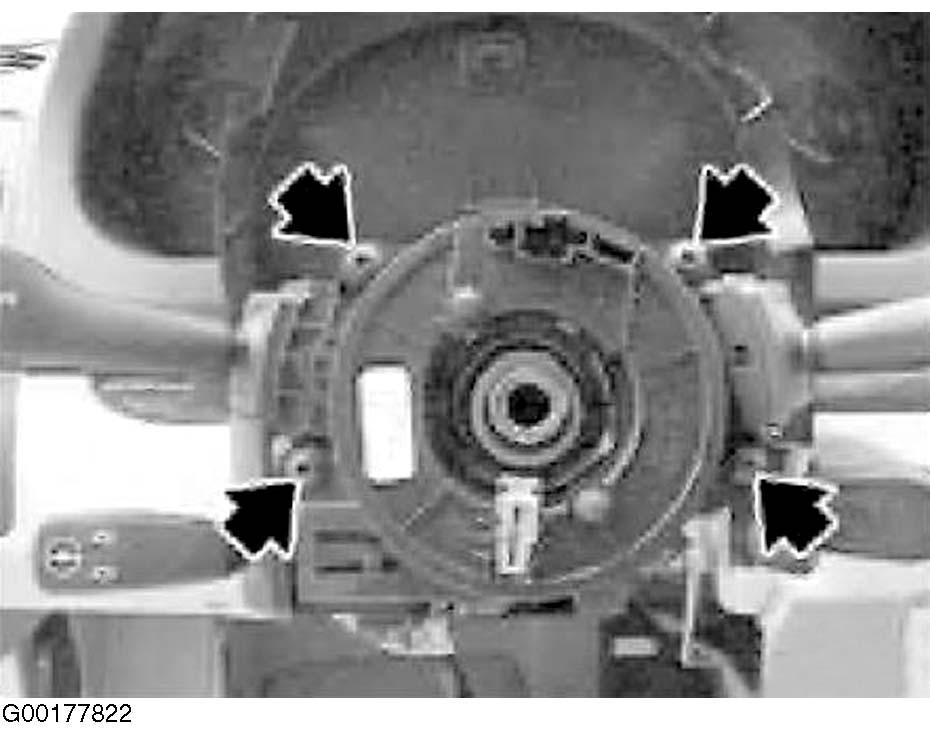

Fig 2: Removing Stalk Fixture For Steering Column
G00177822Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Removing Clamping Bolt
G00175052Courtesy of BMW OF NORTH AMERICA, INC.
Fig 4: Locating Shear-off Screw
G00175070Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Removing Connector From Ignition Starter Switch
G00175071Courtesy of BMW OF NORTH AMERICA, INC.
Fig 6: Identifying Mechanical Adjustment Components
G00175073Courtesy of BMW OF NORTH AMERICA, INC.
Fig 7: Steering Column Support Tube Components
G00175072Courtesy of BMW OF NORTH AMERICA, INC.
