61 31 176 Removing And Installing/Replacing Emergency Call Button

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete ceiling light (front). Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT (FRONT) .

Remove front console insert. Refer to 61 31 175 Removing And Installing/Replacing Switch For Slide/Tilt Sunroof

Unlock emergency call button (1) and press from inside out of front console insert (2).

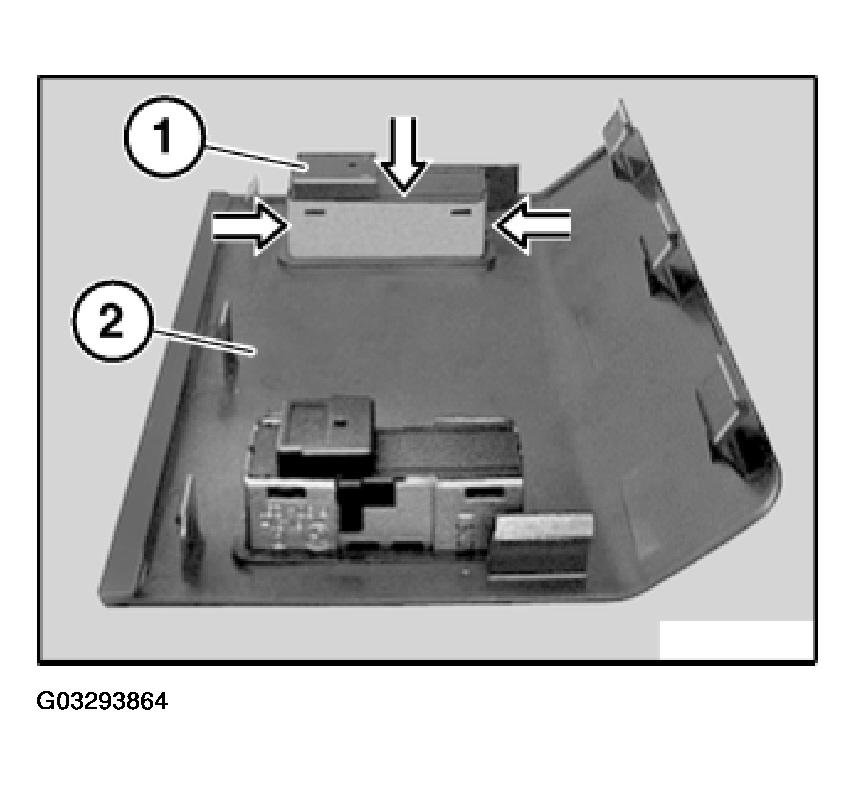

Fig 1: Emergency Call Button, Front Console Insert And Removal Directions
G03293864Courtesy of BMW OF NORTH AMERICA, INC.
