61 31 175 Removing And Installing/Replacing Switch For Slide/Tilt Sunroof

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete ceiling light (front). Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT (FRONT) .

Lever out front console insert (1) in direction of arrow.

Disconnect plug connection underneath and remove front console insert (1).

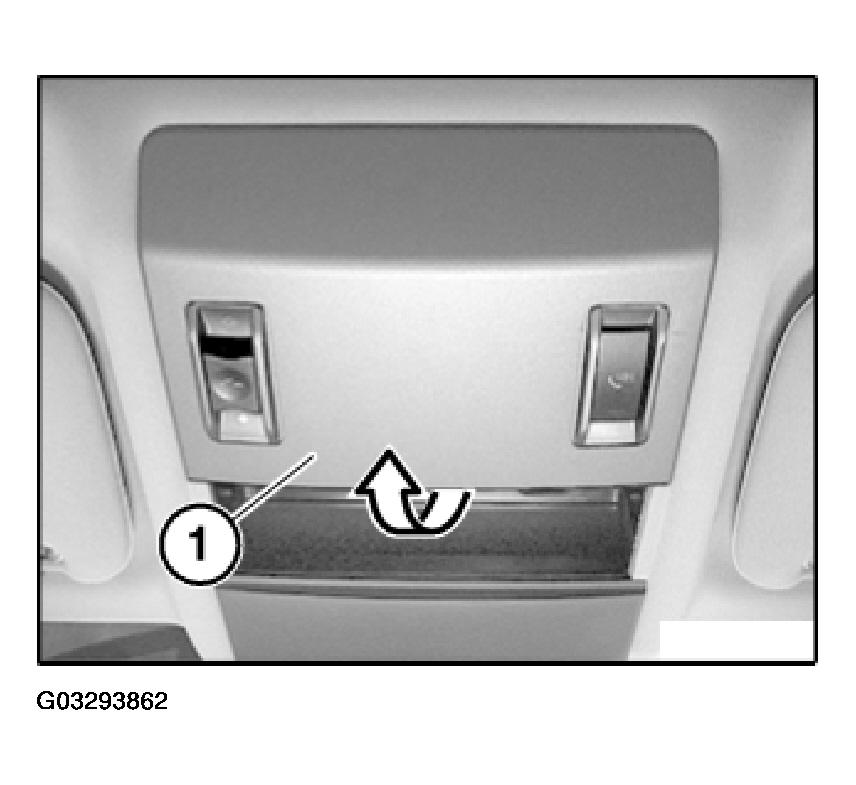

Fig 1: Front Console Insert And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock sunroof switch (1) and press from inside out of front console insert (2).

Installation:

Initialize sunroof. Refer to 54 0... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .

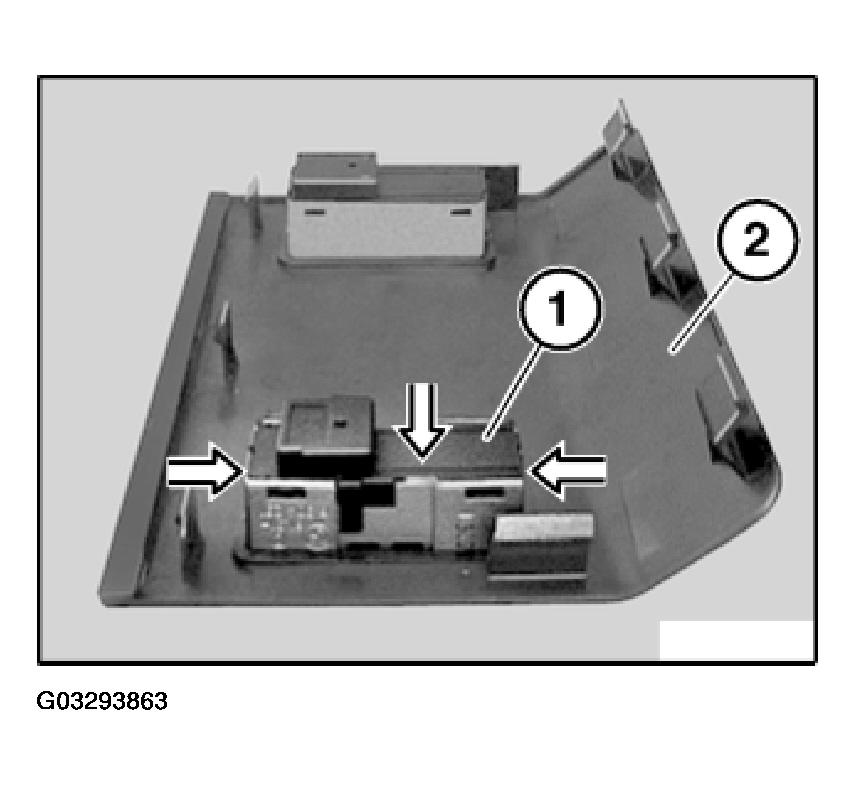

Fig 2: Sunroof Switch, Front Console Insert And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
