61 31 016 Removing And Installing/Replacing Turn Indicator/Dimmer Stalk

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front section of steering column cover. Refer to 32 31 010 REMOVING AND INSTALLING/REPLACING FRONT SECTION OF STEERING COLUMN COVER .

Release screws (1).

Remove indicator/dimmer stalk (2) in direction of arrow.

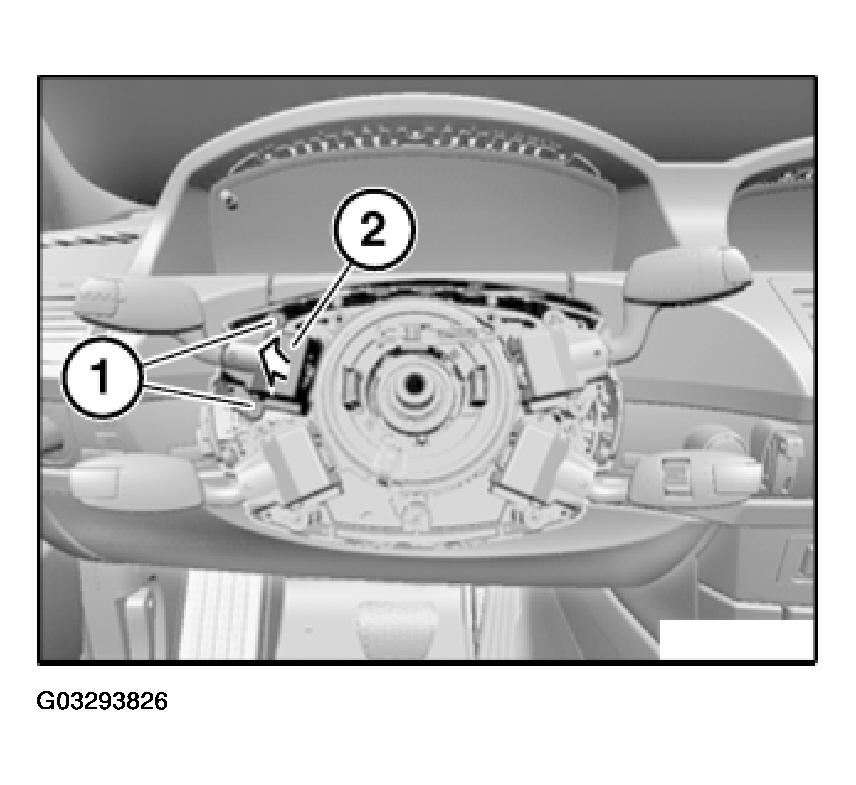

Fig 1: Screws, Indicator/Dimmer Stalk And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seat turn signal/dimmer stalk (2) with integrated pin housing (1) exactly in fixture for steering column control.

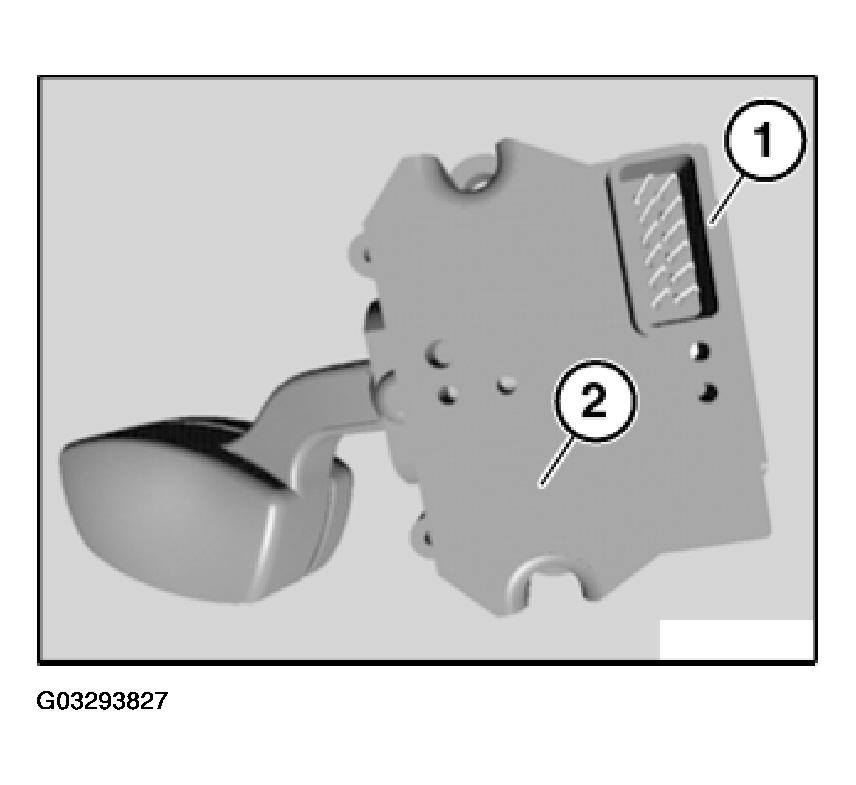

Fig 2: Signal/Dimmer Stalk And Housing Pin

Courtesy of BMW OF NORTH AMERICA, INC.
