32 31 010 Removing And Installing/Replacing Front Section Of Steering Column Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove steering wheel. Refer to 32 33 000 REMOVING AND INSTALLING/REPLACING STEERING WHEEL .

Pull off front trim panel towards rear.

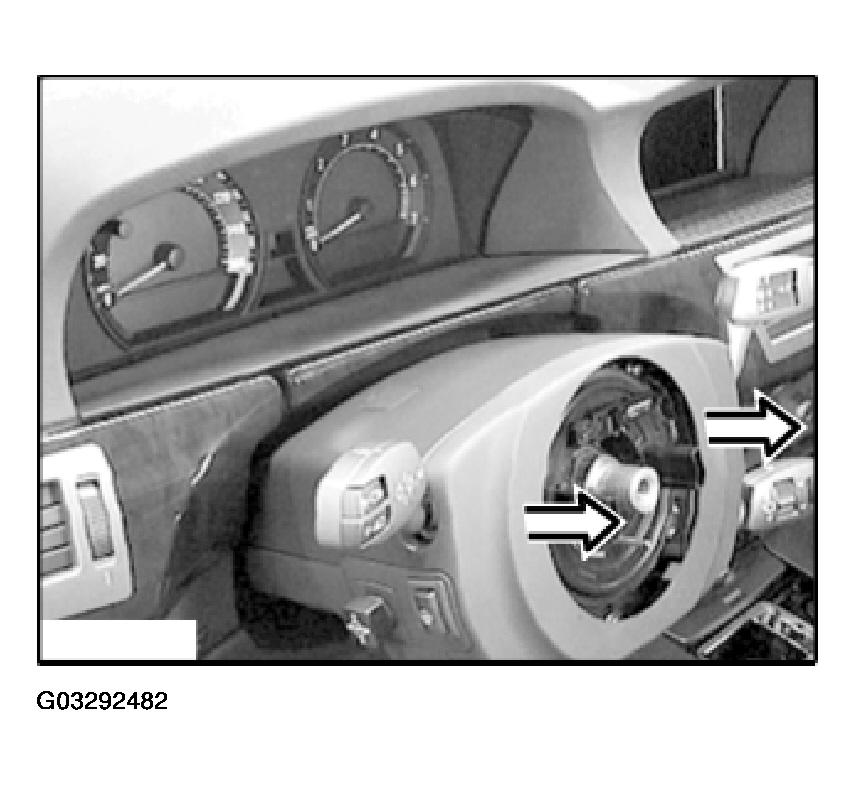

Fig 1: Front Trim Panel Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locks (1) must engage in pins (2).

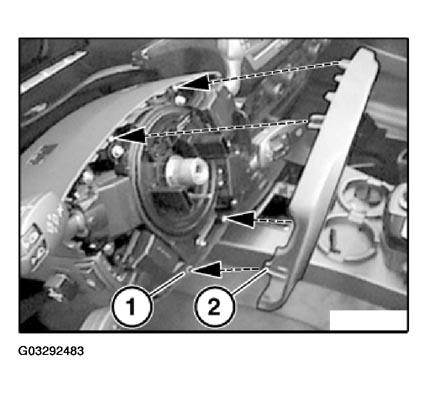

Fig 2: Front Trim Panel Installation Direction, Pins And Locks

Courtesy of BMW OF NORTH AMERICA, INC.
