Coil Spring: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

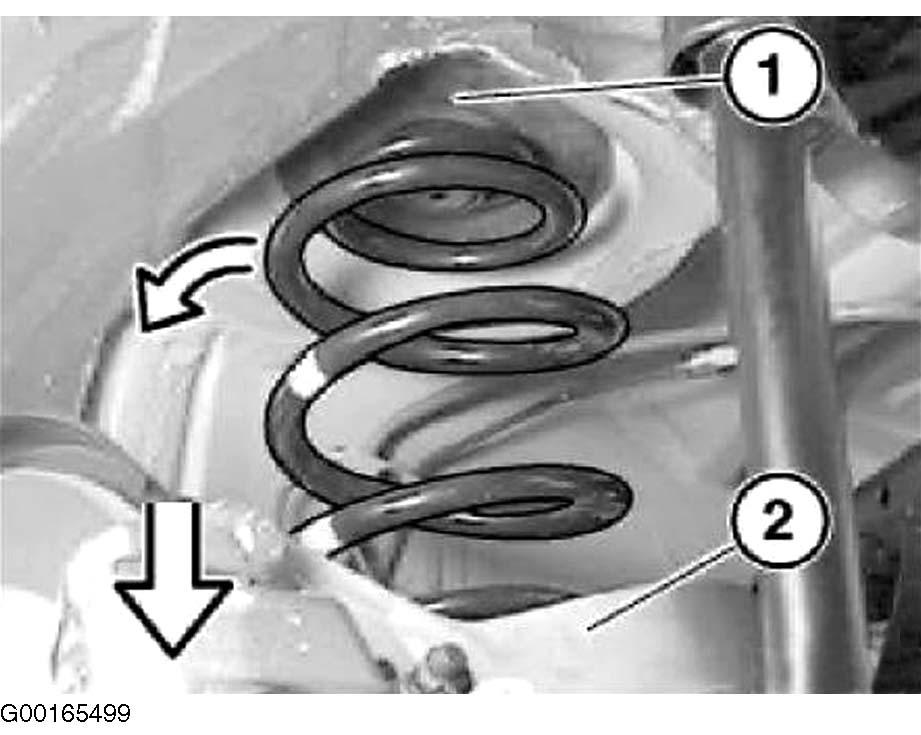

On the rough road package version, the top spring pad (1) is .6" (14.5 mm) thick. See Figure
.
- Check lower (2) and upper (1) spring pads for damage. Replace if necessary.
- Press spring pad at bottom into control arm.
- Insert top spring pad in spring.
- Place spring on spring pad installed in control arm and position spring pad at top on body. The spring pads must be positively seated in the body and the control arm. Otherwise, there is a risk the coil spring will jump out of the centering mount and cause noises.

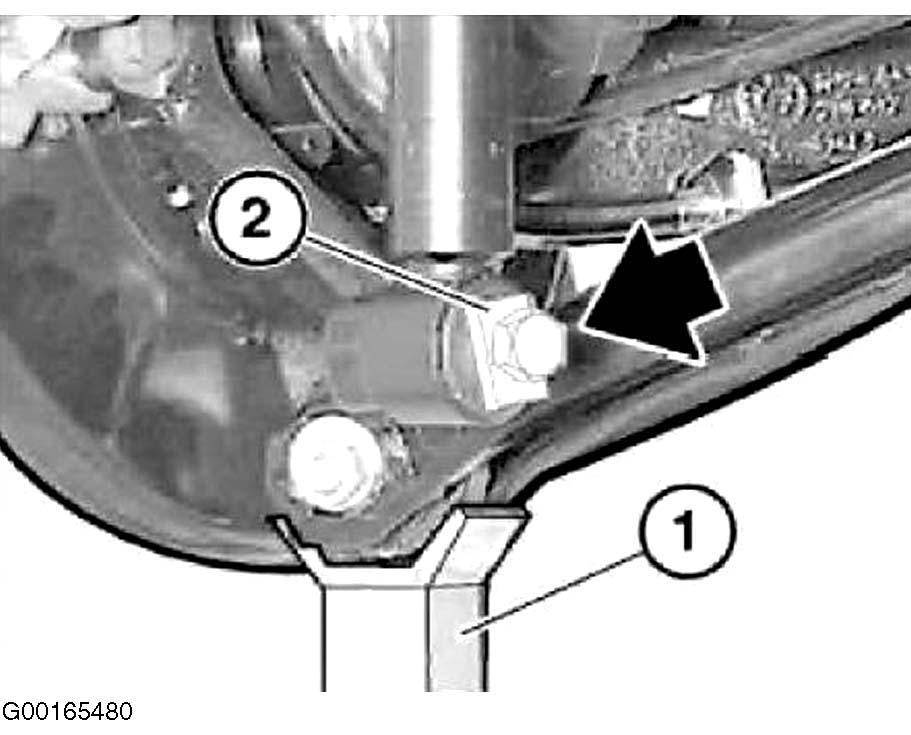

- To complete installation, reverse removal procedure. Thrust washer (2) on rubber mount must point to bolt head. See Figure . Tighten bolt to specification. See TORQUE SPECIFICATIONS .
