Torque Specifications
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| Axle Carrier-To-Body |
57 (77) |
| Bearing Pedestal Nut |
74 (100) |
| Brake Hose Coupling |
10 (14) |
| Control Arm-To-Rear Axle Carrier |
57 (77) |
| Control Arms-To-Trailing Arm |
81 (110) |
| Lower Control Arm-To-Trailing Arm Bolt |
57 (77) |
| Rear Axle Carrier Tension Strut Nut |
57 (77) |

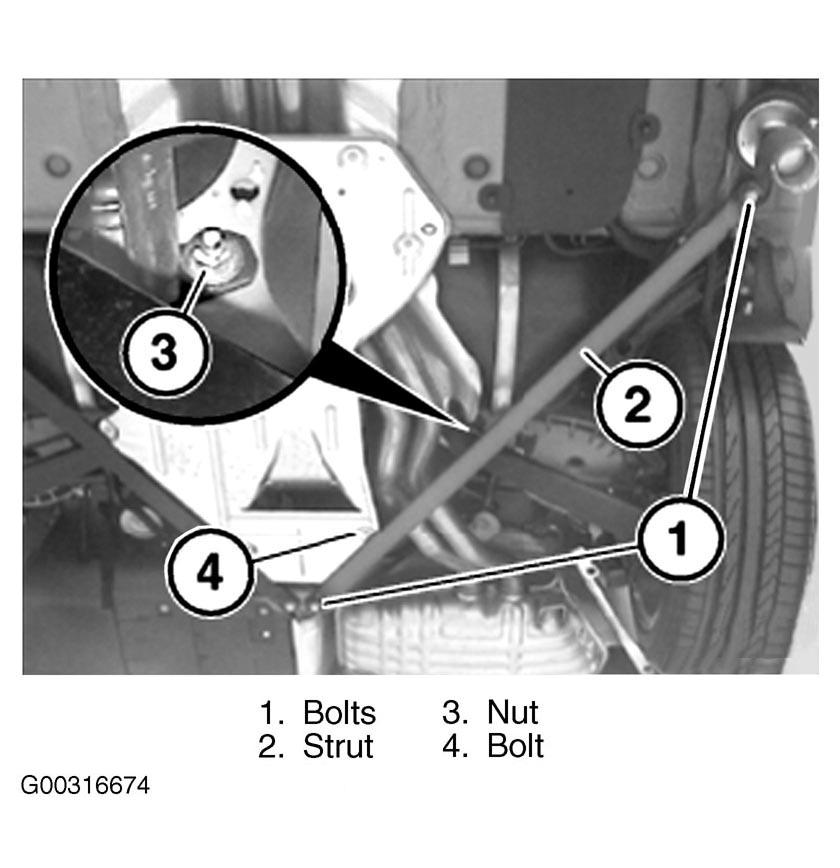

| Rear Axle Tension Strut |
| Screw (1) |
44 (59) |
| Nut (3) |
18 (24) |
| Shock Absorber-To-Trailing Arm |
74 (100) |
| Shock Absorber Support On Body |
21 (28) |
| Stabilizer Bar-To-Rear Axle Support |
16 (22) |
| Stabilizer Link-To-Bracket |
16 (22) |
| Stabilizer Link-To-Upper Control Arm Bracket |
16 (22) |
| Stud To Body |
66 (90) |
| Tension Strut/Reinforcing Plate-To-Rear Axle |
44 (59) |
| Trailing Arm Console To Body |
57 (77) |
| Trailing Arm To Console |
74 (100) |
| Upper Control Arm-To-Trailing Arm Bolt |
74 (100) |
| Wheel Lug Bolt |
103 (140) |
