61 13 050 Removing and installing/replacing fuse box in passenger compartment

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES and cables.

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD
Only E72: Disconnect BOTH BATTERY EARTH CABLES
Remove TRIM FOR INSTRUMENT PANEL AT BOTTOM RIGHT

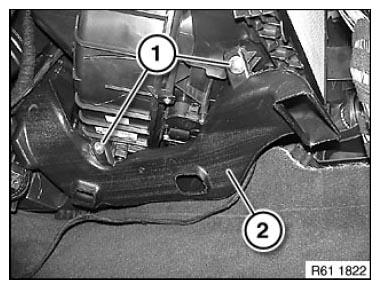

Release screws (1).

Remove air duct (2).

Fig 1: Identifying Air Duct And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

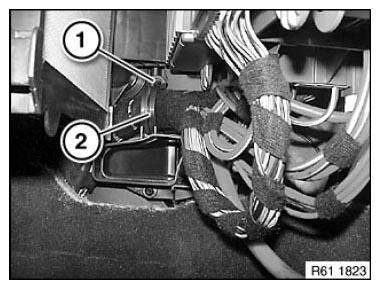

Release screw (1).

Slacken wiring harness in cable holder (2).

Fig 2: Identifying Cable Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

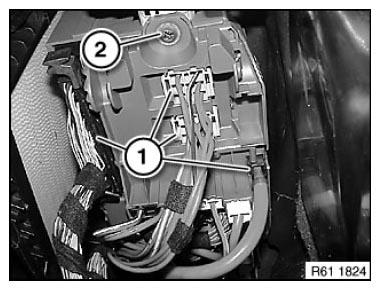

Disconnect plug connection (1).

Release screw (2).

Fig 3: Identifying Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

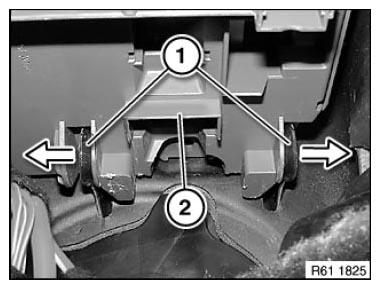

Lever holders (1) at bulkhead out of fuse box (2) in direction of arrow.

Lower fuse box (2).

Fig 4: Removing Bulkhead Holder From Fuse Box

Courtesy of BMW OF NORTH AMERICA, INC.

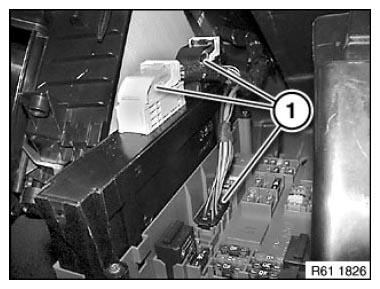

Disconnect plug connection (1).

Fig 5: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

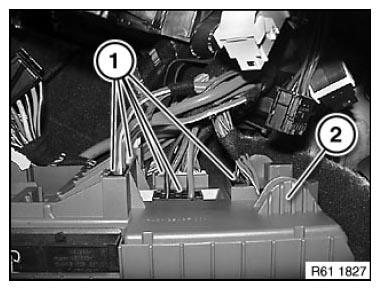

Turn fuse box (2) over and disconnect all plug connections (1).

Replacement:

Remove JUNCTION BOX ELECTRONICS .

Remove fuses and relays.

Fig 6: Identifying Fuse Box And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
