61 35 107 Removing and installing or replacing junction box electronics

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD
E72 Only: Disconnect BOTH NEGATIVE BATTERY CABLES
Remove TRIM FOR INSTRUMENT PANEL AT BOTTOM RIGHT

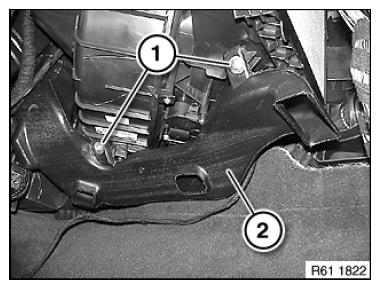

Release screws (1).

Remove air duct (2).

Fig 1: Identifying Air Duct And Screws

G08574034

Courtesy of BMW OF NORTH AMERICA, INC.

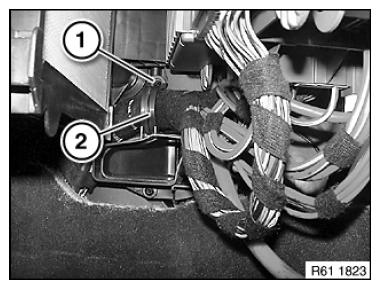

Release screw (1).

Slacken wiring harness in cable holder (2).

Fig 2: Identifying Cable Holder And Screw

G08574035

Courtesy of BMW OF NORTH AMERICA, INC.

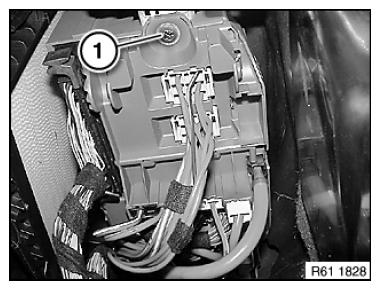

Release screw (1).

Fig 3: Identifying Passenger Compartment Fuse Box Mounting Screw

G08574036

Courtesy of BMW OF NORTH AMERICA, INC.

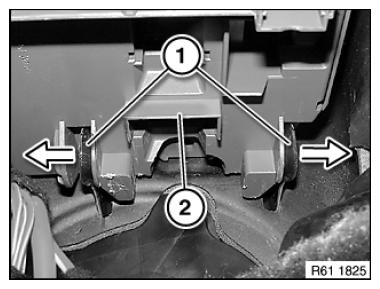

Lever holders (1) at bulkhead out of passenger compartment fuse box (2) in direction of arrow.

Lower passenger compartment fuse box (2).

Fig 4: Removing Bulkhead Holder From Fuse Box

G08574037

Courtesy of BMW OF NORTH AMERICA, INC.

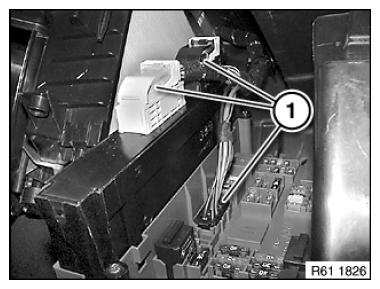

Disconnect plug connection (1).

Fig 5: Identifying Plug Connection

G08574038

Courtesy of BMW OF NORTH AMERICA, INC.

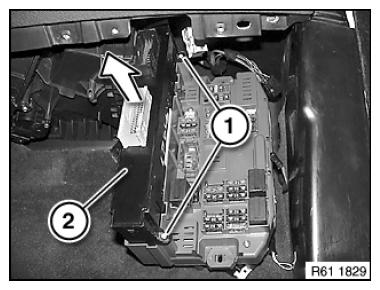

Release screws (1).

Pull junction box electronics (2) in direction of arrow out of passenger compartment fuse box.

Disconnect associated plug connection and remove junction box electronics (2).

Fig 6: Removing Junction Box Electronics

G08574039

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure junction box electronics (2) is correctly seated in passenger compartment fuse box.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
