32 13 070 Removing and installing electromechanical power steering (EPS)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work:

Disconnect HIGH-VOLTAGE SYSTEM FROM POWER
Observe SAFETY INSTRUCTIONS for handling with hybrid vehicles

IMPORTANT: Steering box:
Check connection of steering box for corrosion, clean contacts if necessary. The steering box must be replaced if the corrosion is too far advanced.
Connecting line:
In the event of moisture/corrosion inside the two plug connections, check the insulation of the connecting cable. If the insulation reveals any noticeable/striking features, it will be necessary to replace the part. Otherwise it will be sufficient to replace the contacts or plug housing.

NOTE: In a warranty case you must always provide a fault memory printout, even where there is no fault memory entry, with the defective part.

Necessary preliminary tasks:

Remove front UNDERBODY PROTECTION
Disconnect BATTERY EARTH LEAD

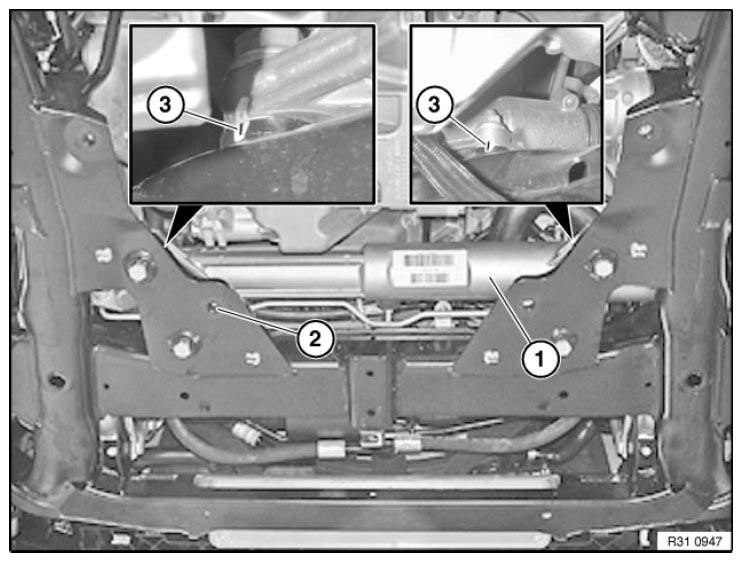

IMPORTANT: To avoid the need for axle/wheel alignment, mark position of steering box (1) to front axle support (2).

To do so, draw a wide white stripe on the rear bolting points (left and right) and apply a thin black marking (3) to this stripe.

Remove TRACK ROD END ON BOTH SIDES FROM SWIVEL BEARING
Lower FRONT AXLE SUPPORT
Remove STABILIZER

Fig 1: Identifying Steering Box And Front Axle Support Mark Position

G08577523

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) from steering box (2) and disconnect.

Installation note:

Check plug connection for moisture and corrosion.

Plug connection must snap audibly into place.

Make sure connecting lead is correctly laid.

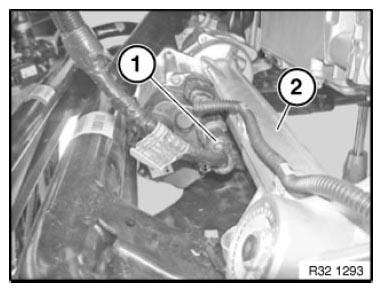

Fig 2: Identifying Plug Connection And Steering Box

G08577524

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from steering box (2).

Tightening torque 32 00 1AZ .

Installation note:

When installing, make sure that the steering box is realigned to the markings applied to the front axle support prior to removal.

Replace screws and nuts.

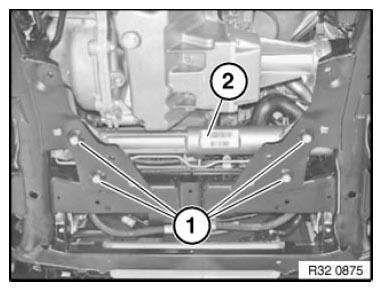

Fig 3: Identifying Steering Box And Screws

G08577525

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) from steering box at bottom and disconnect.

Remove steering spindle on steering box.

Installation note:

Check plug connections for moisture and corrosion.

Plug connection must snap audibly into place.

Make sure connecting lead is correctly laid.

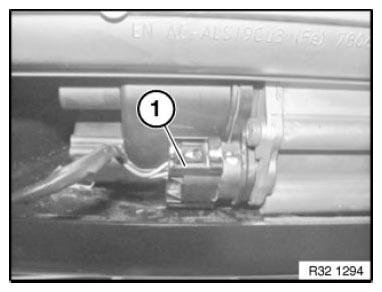

Fig 4: Identifying Plug Connection Of Steering Box

G08577526

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

Plug connection (1) on electric steering box must not become damaged during removal!

Remove steering box with wiring harness sideways between engine and front axle support.

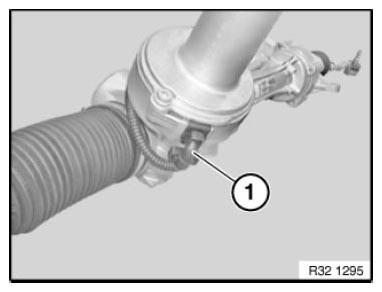

Fig 5: Identifying Plug Connection On Electric Steering Box

G08577527

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation note

Teach in END STOP SOFTWARE
Carry out STEERING ANGLE SENSOR ADJUSTMENT
