52 25... Removing and installing armrest storage tray

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER AND BUTTON
Remove BASE PLATE

Release screws (1).

To remove storage tray, raise cover (2) slightly.

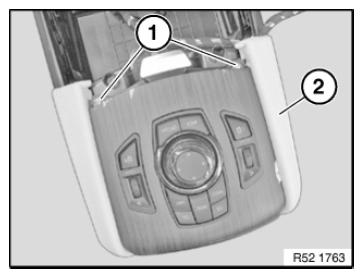

Fig 1: Identifying Armrest Storage Tray Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press the marked area to unlock the storage tray.

Remove storage tray upward at the same time.

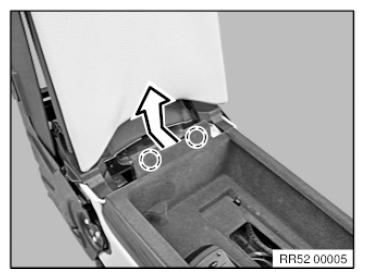

Fig 2: Removing Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.
