52 25... Removing and installing button and trim for button

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Open cover (1).

IMPORTANT: Tape off working area with fabric adhesive tape. Risk of damage!

Lever out trim (2) with plastic wedge in upward direction.

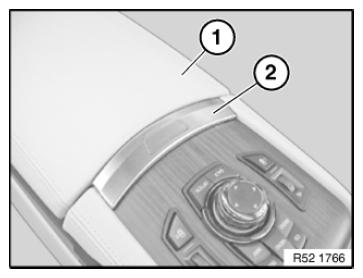

Fig 1: Identifying Button Trim And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip button (1) towards top.

Remove spring underneath.

Remove locking part (2) towards front.

Installation note:

Make sure spring is correctly seated under button (1).

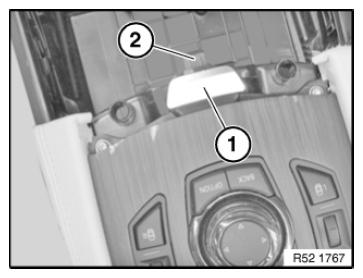

Fig 2: Identifying Button And Locking Part

Courtesy of BMW OF NORTH AMERICA, INC.
