Removal And Installation: Housing: Installation

    CAUTION: Do not reuse hose clamps. Make sure new hose clamps are seated correctly.
    NOTE: Make sure the thermostat housing and mating surface are clean of dirt and old silicone.
    NOTE: Apply a 2.0-3.0 mm (0.079-0.118 inch) bead of Silicone Gasket and Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSK -M2G343-A4 to the mounting surface of the water pump.

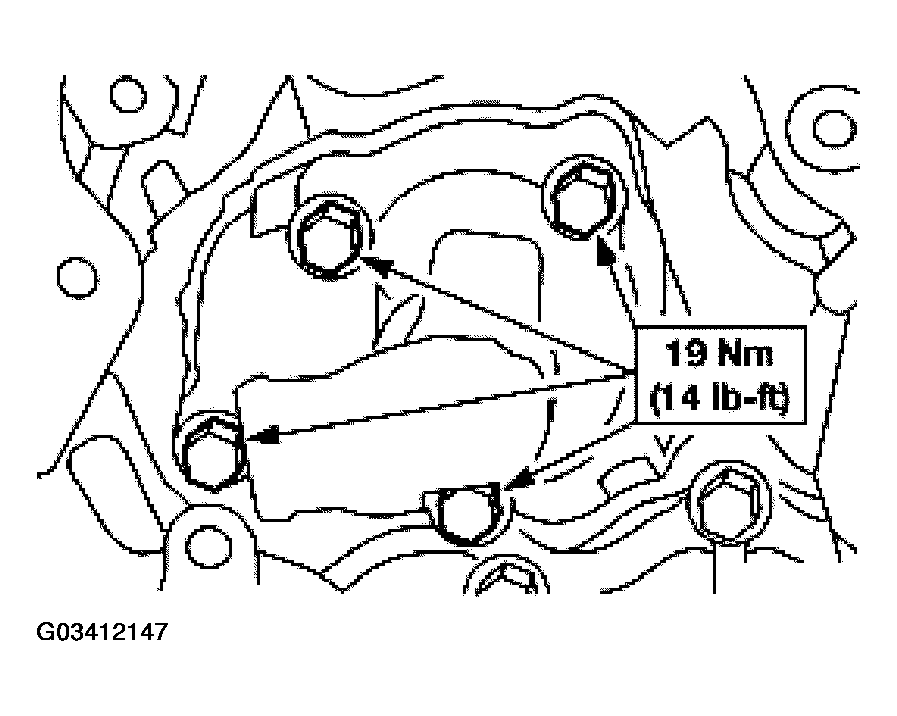

    Fig 1: Thermostat Housing Bolt Tightening Specification
    G03412147Courtesy of FORD MOTOR CO.

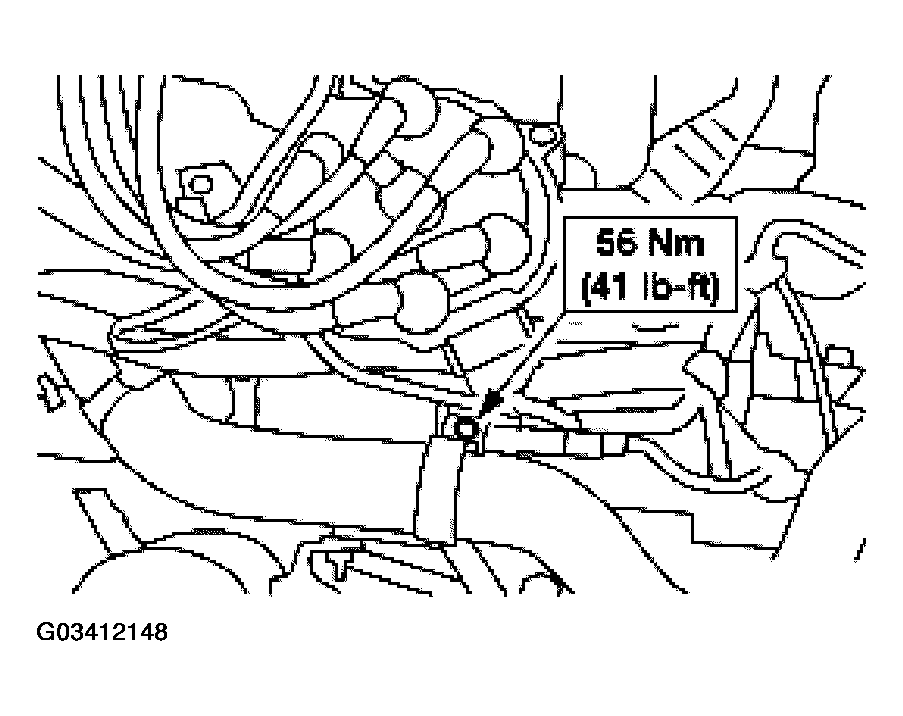

    Fig 2: Hose Clamp Tightening Specification
    G03412148Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
