Vehicle Emission Control Information Label

NOTE: Vehicles not produced by Ford Motor Co. do not have a Ford-produced Vehicle Emission Control Information (VECI) label. Refer to manufacturer of vehicle to locate and understand information coded on VECI.

The Vehicle Emission Control Information (VECI) label contains emission control information specific to the vehicle and engine. Specifications on this label are critical to servicing emissions systems on the vehicle. In addition to tune-up specifications and procedures, VECI also includes a schematic of engine vacuum system. VECI is attached to under side of hood or on radiator support sight shield. See Fig 1.

Fig 1: Vehicle Emission Control Information Label (Except Villager)

Courtesy of FORD MOTOR CO.

NOTE: Vacuum diagrams for applications not shown are not available from manufacturer. See vehicle underhood emissions label.

VACUUM DIAGRAM APPLICATIONS

Application/Calibration No. ⁽¹⁾

See

Expedition

4.6L

9-VNA-BGC (BTG2), 9-VNA-BGF (BTG3), 9-VNA-BGH (BTG5)

Fig 2

5.4L

9-VZA-BED (JAS3), 9-VZA-BEF (JAS4), 9-WCA-BAC (LAZ2), 9-WCA-BAF (LAZ3)

Fig 3

Explorer

4.0L

Except SOHC

9-LTA-BAB (XQX1), 9-LTA-BAG (XQX3), 9-LTM-BAB (ZRA1), 9-LTM-BAF (ZRA2)

Fig 4

SOHC

9-NEA-BAB (CDE1), 9-NEA-BAF (CDE2), 9-NEA-BAG (CDE3), 9-NEA-BAH (CDE4)

Fig 5

5.0L

9-VAA-BAB (EQE1), 9-VAA-BAF (EQE2), 9-VAA-BAG (EQE3)

Fig 6

F-150

4.2L

9-LYA-AAC (AAT2), 9-LYA-AAF (AAT3), 9-LYA-AAG (AAT4), 9-LYA-ABC (BNC2), 9-LYA-ABF (BNC3), 9-LYA-ABG (BNC4), 9-LYA-BAC (DQE2), 9-LYA-BAF (DQE3), 9-LYA-BAG (DQE4), 9-LYA-BBC (EJK2), 9-LYA-BBF (EJK3), 9-LYA-BBG (EJK4), 9-LYM-AAC (FMY2), 9-LYM-AAF (FMY3), 9-LYM-AAG (FMY4), 9-LYM-ABC (GTL2), 9-LYM-ABF (GTL3), 9-LYM-ABG (GTL4), 9-LYM-BAC (JNY2), 9-LYM-BAF (KGA3), 9-LYM-BAG (JNY4), 9-LYM-BBC (KGA2), 9-LYM-BBF (KGA3), 9-LYM-BBG (KGA4)

Fig 7

4.6L

9-VNA-ADC (YBQ2), 9-VNA-ADF (YBQ3), 9-VNA-AEC (ZJP2), 9-VNA-AEF (ZJP3), 9-VNA-BBC (CFK2), 9-VNA-BBF (CFK3), 9-VNA-BCC (DRT2), 9-VNA-BCF (DRT3), 9-VNM-ACC (FUG2), 9-VNM-ACF (FUG3), 9-VNM-ADC (GZW2), 9-VNM-ADF (GZW3), 9-VNM-BCC (JHX2), 9-VNM-BCF (JHX3), 9-VNM-BDC (KSR2), 9-VNM-BDF (KSR3)

Fig 2

5.4L

Except Bi-Fuel & Supercharged

9-VZA-ACD (ZZT3), 9-VZA-ACF (ZZT4), 9-VZA-ACG (ZZT5), 9-VZA-ADC (BOJ2), 9-VZA-ADG (BOJ4), 9-VZA-ADH (BOJ5), 9-VZA-APF (DAH3), 9-VZA-APG (DAH4), 9-VZA-BCD (FCR3), 9-VZA-BCF (FCR4), 9-VZA-BFD (HNE3), 9-VZA-BFF (HNE4)

Fig 3

Bi-Fuel

9-VZA-AZD, 9-VZA-AZE, 9-VZA-BUD, 9-VZA-BUE, 9-VZA-BVD, 9-VZA-BVE

Fig 3

Supercharged

9-VZA-AKB (CUX1)

Fig 8

F-250

4.6L

9-VNA-AGC (NSL2), 9-VNA-AHC (PSA2), 9-VNA-APC (RPH0), 9-VNA-BEC (RCD2), 9-VNA-BFC (SWY2), 9-VNA-BNC (SGX0), 9-VNM-AAC (TPP2), 9-VNM-AAF (TPP3), 9-VNM-ABC (VTE2), 9-VNM-BAC (WXK2), 9-VNM-BAF (WXK3), 9-VNM-BBC (XTE2), 9-VNM-BBF (XTE3)

Fig 2

5.4L

Except Bi-Fuel, Natural Gas & Super Duty

9-VZA-ABD (WIJ3), 9-VZA-ABF (WIJ4), 9-VZA-ACD (ZZT3), 9-VZA-ACF (ZZT4), 9-VZA-BFD (HNE3), 9-VZA-BFF (HNE4),

Fig 3

Bi-Fuel

9-VZA-AXD, 9-VZA-AXE, 9-VZA-BVD, 9-VZA-BVE

Fig 3

Natural Gas

9-VZA-AND (ZAT3)

Fig 9

Super Duty

9-VZA-AFC (MER2), 9-VZA-AFD (MER3), 9-VZA-AFF (MER4), 9-VZA-BJC (NUY2), 9-VZA-BJF (NYU3), 9-VZM-ABB (PIF1)

Fig 10

6.8L

9-WAA-ACB (AEO1), 9-WAA-ACF (AEO2), 9-WAA-AHC (DOZ2), 9-WAA-AHF (DOZ3), 9-WAA-BCC (EAP2), 9-WAA-BCF (EAP3), 9-WAA-BDC (FOT2), 9-WAA-BDF (FOT3), 9-WAA-BDG (FOT4), 9-WAA-BLC (JUR2), 9-WAA-BLF (JUR3), 9-WAA-BVC (JTY2), 9-WAA-BVF (JTY3), 9-WAA-BVG (JTY4), 9-WAM-ACB (LUP1), 9-WAM-BFC (SAJ2), 9-WAM-BFF (SAJ3)

Fig 10

7.3L Turbo Diesel

9-DTA-BBE (JBG4), 9-DTA-BEE (VCQ4), 9-DTM-BAD (ETR3), 9-BTM-BED (ZDR3)

⁽²⁾

F-350

5.4L

9-VZA-AFC (MER2), 9-VZA-AFD (MER3), 9-VZA-AFF (MER4), 9-VZA-BJC (NUY2), 9-VZA-BJF (NYU3), 9-VZM-ABB (PIF1)

Fig 10

6.8L

Fig 10

7.3L Turbo Diesel

9-DTA-BBE (JBG4), 9-DTA-BEE (VCQ4), 9-DTM-BAD (ETR3), 9-BTM-BED (ZDR3)

⁽²⁾

F-450

6.8L

9-WAA-AAB (YHH1), 9-WAA-AAF (BIH3), 9-WAA-AAF (YHH2), 9-WAA-AFC (BIH2), 9-WAM-AAB (KAC1)

Fig 10

9-WAA-AIC (MCM2), 9-WAA-AIF (MCM3)

Fig 11

7.3L Turbo Diesel

9-DTA-ADE (HPA4), 9-DTA-ALE (GLF4), 9-DTM-ACD (DYK3), 9-DTM-AHD (CLB3)

⁽²⁾

F-550

6.8L

9-WAA-AAB (YHH1), 9-WAA-AAF (BIH3), 9-WAA-AAF (YHH2), 9-WAA-AFC (BIH2)

Fig 10

9-WAA-AIC (MCM2), 9-WAA-AIF (MCM3)

Fig 11

7.3L Turbo Diesel

9-DTA-ADE (HPA4), 9-DTA-ALE (GLF4), 9-DTM-ACD (DYK3), 9-DTM-AHD (CLB3)

⁽²⁾

Mountaineer

4.0L SOHC

9-NEA-BAB (CDE1), 9-NEA-BAF (CDE2), 9-NEA-BAG (CDE3), 9-NEA-BAH (CDE4)

Fig 5

5.0L

9-VAA-BAB (EQE1), 9-VAA-BAF (EQE2), 9-VAA-BAG (EQE3)

Fig 6

Navigator

5.4L

9-VZA-BED (JAS3), 9-VZA-BEF (JAS4), 9-WCA-BAC (LAZ2), 9-WCA-BAF (LAZ3)

Fig 3

Ranger

2.5L

8-49B-R10 (MLC0), 8-49S-R10 (MJT0), 9-B1A-AAA (BDB0), 9-B1A-ABA (ETT0), 9-B1A-ABF (ETT1), 9-B1A-BAA (CLC0), 9-B1A-BAG (RRH0), 9-B1A-BAH (RRH1), 9-B1A-BAJ (RRH2), 9-B1M-AAA (DTR0), 9-B1M-ABA (GAJ0), 9-B1M-ABB (GAJ1), 9-B1M-ACA (XNA0), 9-B1M-ACB (XNA1), 9-B1M-BAA (EPC0), 9-B1M-BAB (EPC1), 9-B1M-BAC (EPC2), 9-B1M-BBB (MRM0), 9-B1M-BBC (MRM1)

Fig 12

3.0L

Except Flex-Fuel

9-LAA-MAB (JAA1), 9-LAA-MAG (LLF0), 9-LAA-MBB (GRR1), 9-LAA-MBG (MTD0), 9-LAM-MAB (MBJ1), 9-LAM-MBB (PDR1)

Fig 13

Flex-Fuel

9-LAA-AHC (HLC2), 9-LAA-AHF (HCL3), 9-LAA-AHG (HCL4), 9-LAA-AJC (JTQ2), 9-LAA-AJF (JTQ3), 9-LAA-AJG (JTQ4), 9-LAA-BHC (KDM2), 9-LAA-BHF (KDM3), 9-LAA-BHG (KDM4), 9-LAA-BJC (LYC2), 9-LAA-BJF (LYC3), 9-LAA-BJG (LYC4), 9-LAM-AAD (MXA3), 9-LAM-AAF (MXA4), 9-LAM-AAG (MXA5), 9-LAM-ABD (NTT3), 9-LAM-ABF (NTT4), 9-LAM-ABG (NTT5), 9-LAM-BAD (YBJ3), 9-LAM-BAF (YBJ4), 9-LAM-BAG (YBJ5), 9-LAM-BBD (PDL3), 9-LAM-BBF (PDL4), 9-LAM-BBG (PDL5)

Fig 13

4.0L

9-LAT-ABB (RKJ1), 9-LTA-ACB (SDY1), 9-LTA-BBB (TCR1), 9-LTA-BCB (VGF1), 9-LTA-BCG (NEG0) - Code FKA, 9-LTM-ABB (GHA1), 9-LTM-ACB (HPD1), 9-LTM-BBB (NFF1), 9-LTM-BCB (PFY1), 9-LTM-BCG (XDD0) - Code FKA

Fig 14

9-LTA-ADA (ERR0), 9-LTA-ADF (ERR1), 9-LTA-AEA (HUU0), 9-LTA-AEF (HUU1), 9-LTA-BBG (KDX0), 9-LTA-BBH (KDX1), 9-LTA-BCG (NEG0) - Codes FCB & FPM, 9-LTA-BCH (NEG1), 9-LTM-ADA (SUQ1), 9-LTM-AEA (TRP0), 9-LTM-BBG (VHA0), 9-LTM-BCG (XDD0) - Code FPM

Fig 15

Super Duty

Van

5.4L - Except Natural Gas

8-46L-R00 (RLM2), 8-46Q-R10 (ANQ2), 8-74C-R10 (BRR2) - Code FFC, 8-74C-R11 (BRR3) - Code FAS, 8-74S-R10 (CVQ2), 8-74S-R11 (CVQ3). 8-74U-R10 (ETY2), 8-74V-R10 (FSS2)

Fig 16

8-74C-R10 (BRR2) - Code FSS, 8-74C-R11 (BRR3) - Code FJS, 8-74T-R10 (DWW2), 8-74T-R11 (DWW3)

Fig 17

5.4L Natural Gas

7-46N-R05 (RST1)

Fig 9

6.8L

8-96E-R10 (WOM2), 8-96E-R12 (WOM3), 8-96E-R13 (WOM4) - Code FSG, 8-96T-R11 (YMC3), 8-96T-R12 (YMC4), 8-96T-R13 (YMC5), 8-96W-R10 (ZJZ2), 8-96W-R12 (ZJZ3), 8-96W-R13 (ZJZ4),

Fig 16

8-96E-R13 (WOM4) - Code FYK, 8-96X-R10 (VOO2), 8-96X-R12 (VOO3), 8-96X-R13 (VOO4), 8-96J-RO5 (XTT1), 8-96J-RO5 (XTT1), 8-96J-R10 (XTT2)

Fig 17

7.3L Turbo Diesel

9-DTA-BAF (PTH5), 9-DTA-BGB (CHK2)

⁽²⁾

Van

4.2L

9-LYA-ACB (ATD1), 9-LYA-ACF (ATD2), 9-LYA-ADB (BYT1), 9-LYA-ADF (BYT2), 9-LYA-AEB (CGR1), 9-LYA-AEF (CGR2), 9-LYA-AFB (DMZ1), 9-LYA-AFF (DMZ2), 9-LYA-BCB (EML1), 9-LYA-BCF (EML2), 9-LYA-BEB (FFY1), 9-LYA-BEF (FFY2), 9-LYA-BFB (GGD1), 9-LYA-BFF (GGD2), 9-LYA-BGB (HXB1), 9-LYA-BGF (HXB2)

Fig 18

4.6L

8-48W-R05 (SYY1)

Fig 19

5.4L

Except Natural Gas

8-46L-R00 (RLM2), 8-46Q-R10 (ANQ2), 8-74C-R10 (BRR2) - Code FFC, 8-74C-R11 (BRR3) - Code FAS, 8-74S-R10 (CVQ2), 8-74S-R11 (CVQ3), 8-74U-R10 (ETY2), 8-74V-R10 (FSS2), 9-VZA-AHC (LHH2), 9-VZA-AHF (LHH3), 9-VZA-BLC (NYY2), 9-VZA-BLF (NYY3)

Fig 16

8-74C-R10 (BRR2) - Code FSS, 8-74C-R11 (BRR3) - Code FJS, 8-74T-R10 (DWW2), 8-74T-R11 (DWW3)

Fig 17

Natural Gas

7-46N-R05 (RST1)

Fig 9

6.8L

8-96E-R10 (WOM2), 8-96E-R12 (WOM3), 8-96E-R13 (WOM4) - Code FSG, 8-96T-R11 (YMC3), 8-96T-R12 (YMC4), 8-96T-R13 (YMC5), 8-96W-R10 (ZJZ2), 8-96W-R12 (ZJZ3), 8-96W-R13 (ZJZ4)

Fig 16

8-96E-R13 (WOM4) - Code FYK, 8-96X-R10 (VOO2), 8-96X-R12 (VOO3), 8-96X-R13 (VOO4)

Fig 17

7.3L Turbo Diesel

9-DTA-BAF (PTH5), 9-DTA-BGB (CHK2)

⁽²⁾

Villager

3.3L

9-AAA-C01 (XFDC), 9-AAA-C10 (XFGA), 9-AAA-C11 (XFGA), 9-AAA-C12 (XFJA), 9-AAA-101 (XFCC), 9-AAA-110 (XFFA), 9-AAA-111 (XFFA), 9-AAA-112 (XFHA)

Fig 20

Windstar

3.0L

9-LAA-BCE (YEL4), 9-LAA-BCF (YEL5)

Fig 21

3.8L

9-LMA-BDE (KFW4), 9-LMA-BDF (KFW5), 9-LMA-BDH (KFW7), 9-LMA-BEE (LWA4), 9-LMA-BEF (LWA5), 9-LMA-BEH (LWA7)

Fig 22

⁽¹⁾	Code within parentheses is new coding sequence for revision level information beginning in 1999 by Ford Motor Co.

⁽²⁾	Information not available from manufacturer.

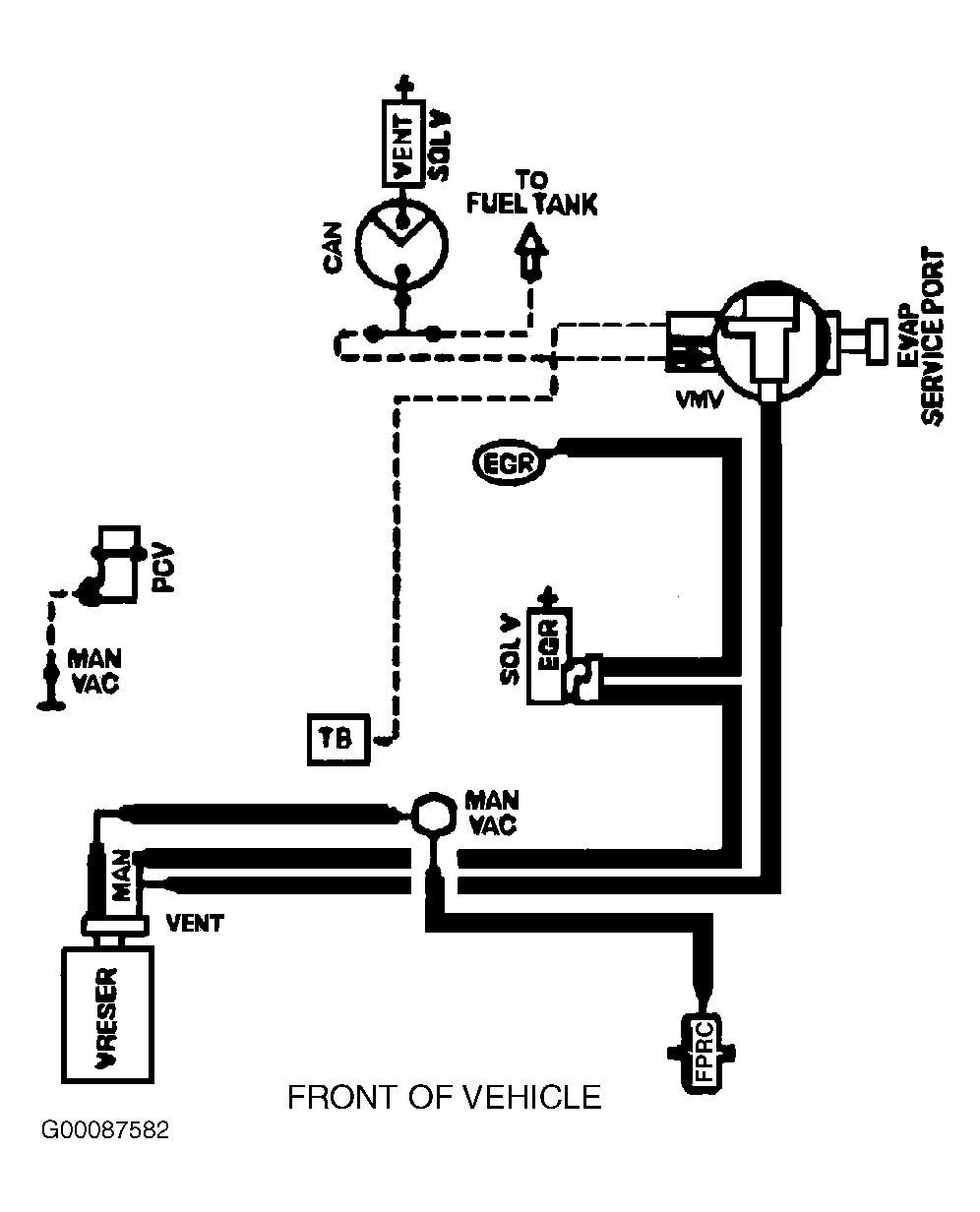

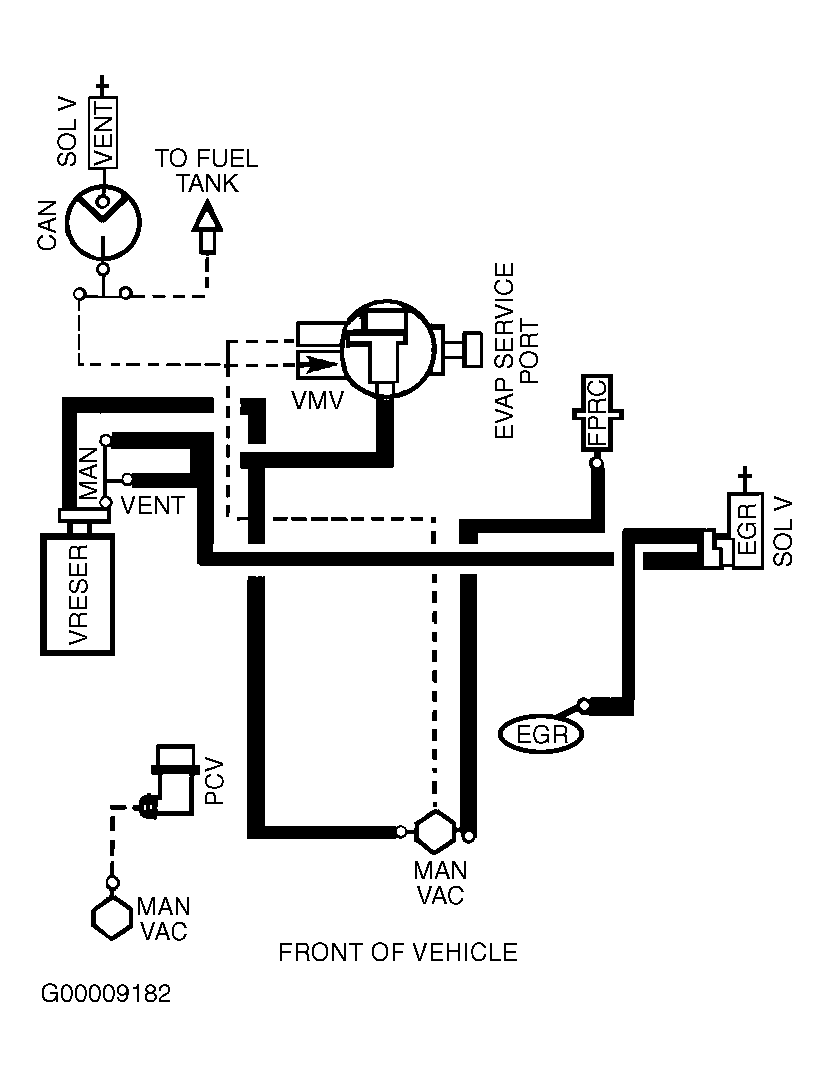

Fig 2: Vacuum Diagram (Expedition, F-150 & F-250 - 4.6L)

Courtesy of FORD MOTOR CO.

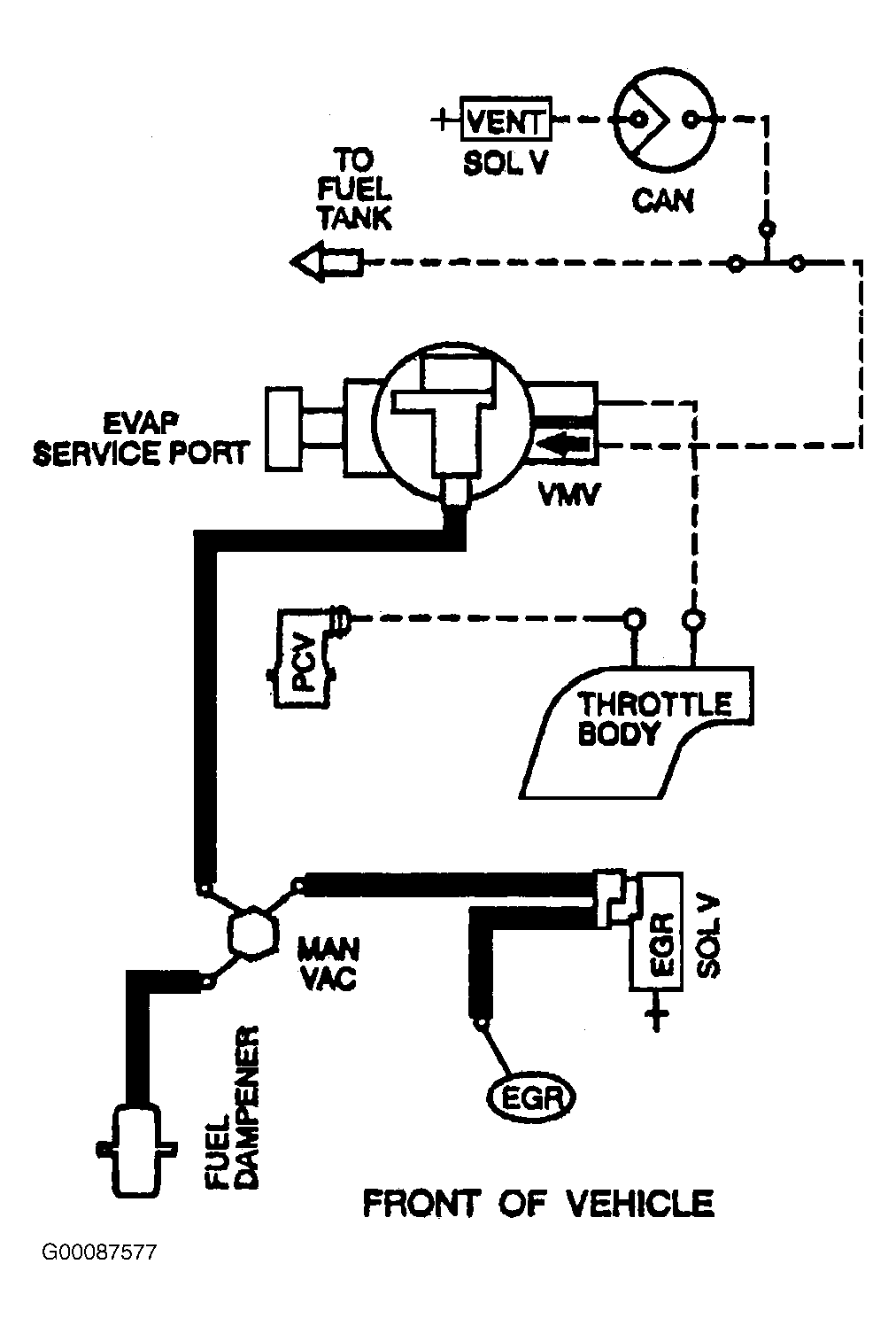

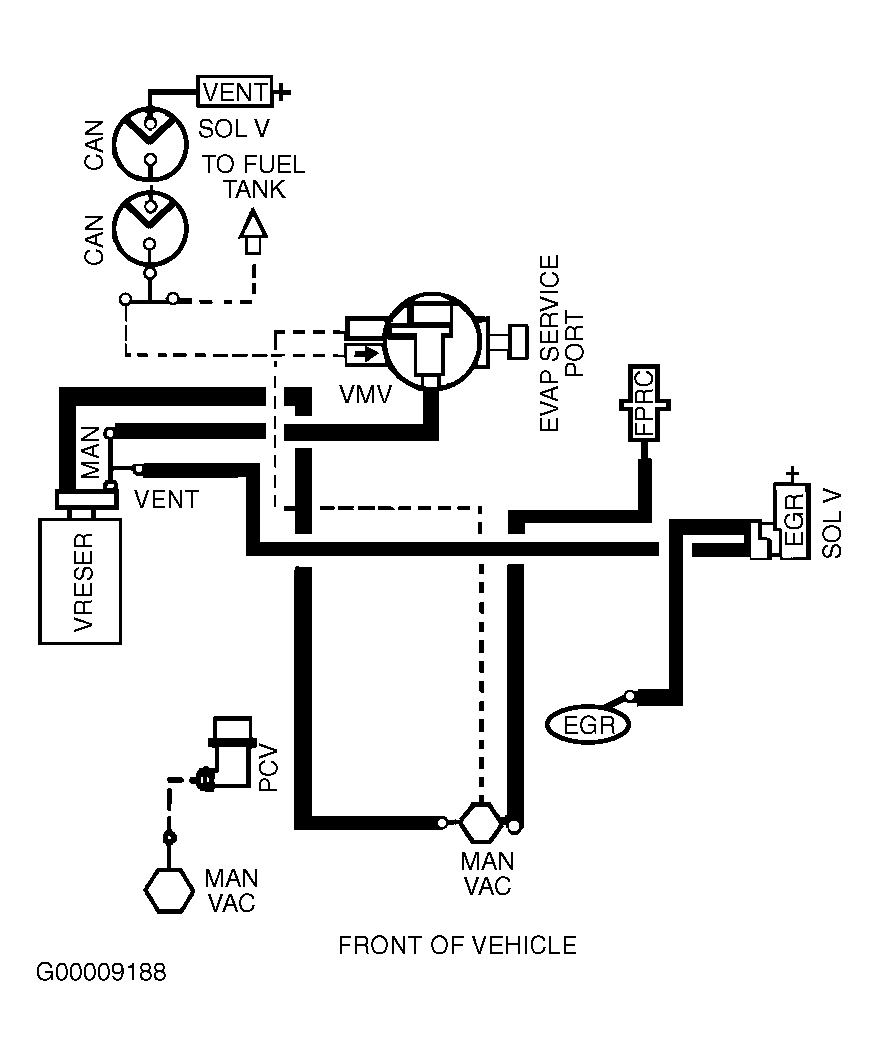

Fig 3: Vacuum Diagram (Expedition, F-150, F-250 & Navigator - 5.4L - Except Supercharged, Natural Gas & Super Duty)

Courtesy of FORD MOTOR CO.

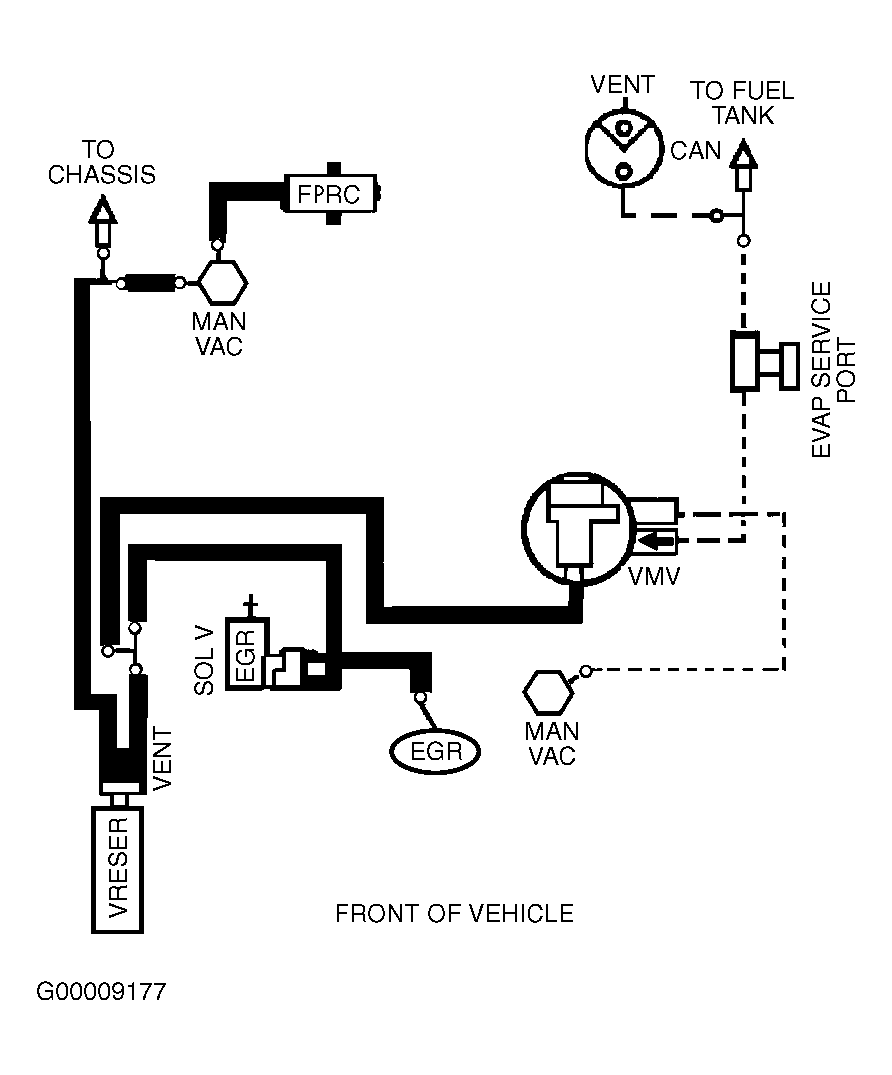

Fig 4: Vacuum Diagram (Explorer - 4.0L - Except SOHC)

Courtesy of FORD MOTOR CO.

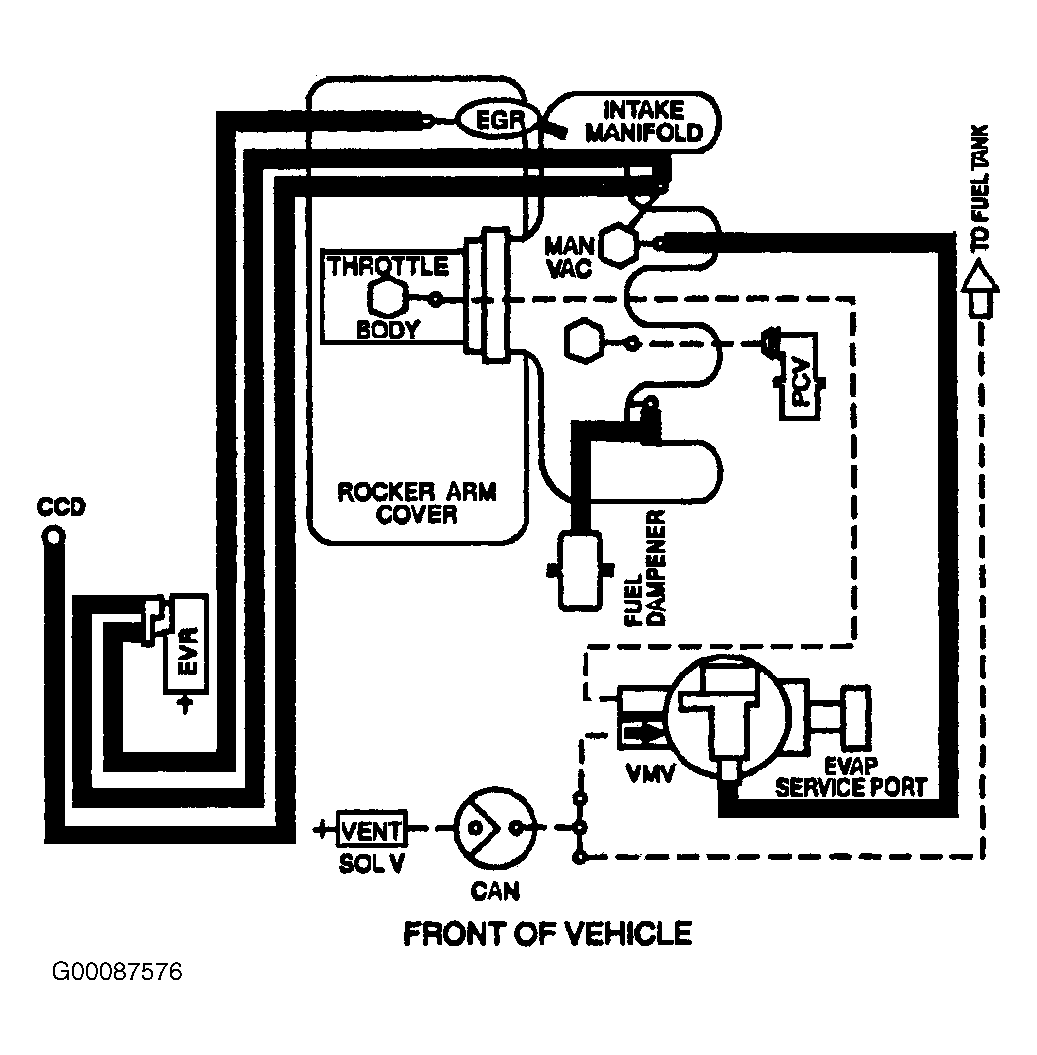

Fig 5: Vacuum Diagram (Explorer & Mountaineer - 4.0L SOHC)

Courtesy of FORD MOTOR CO.

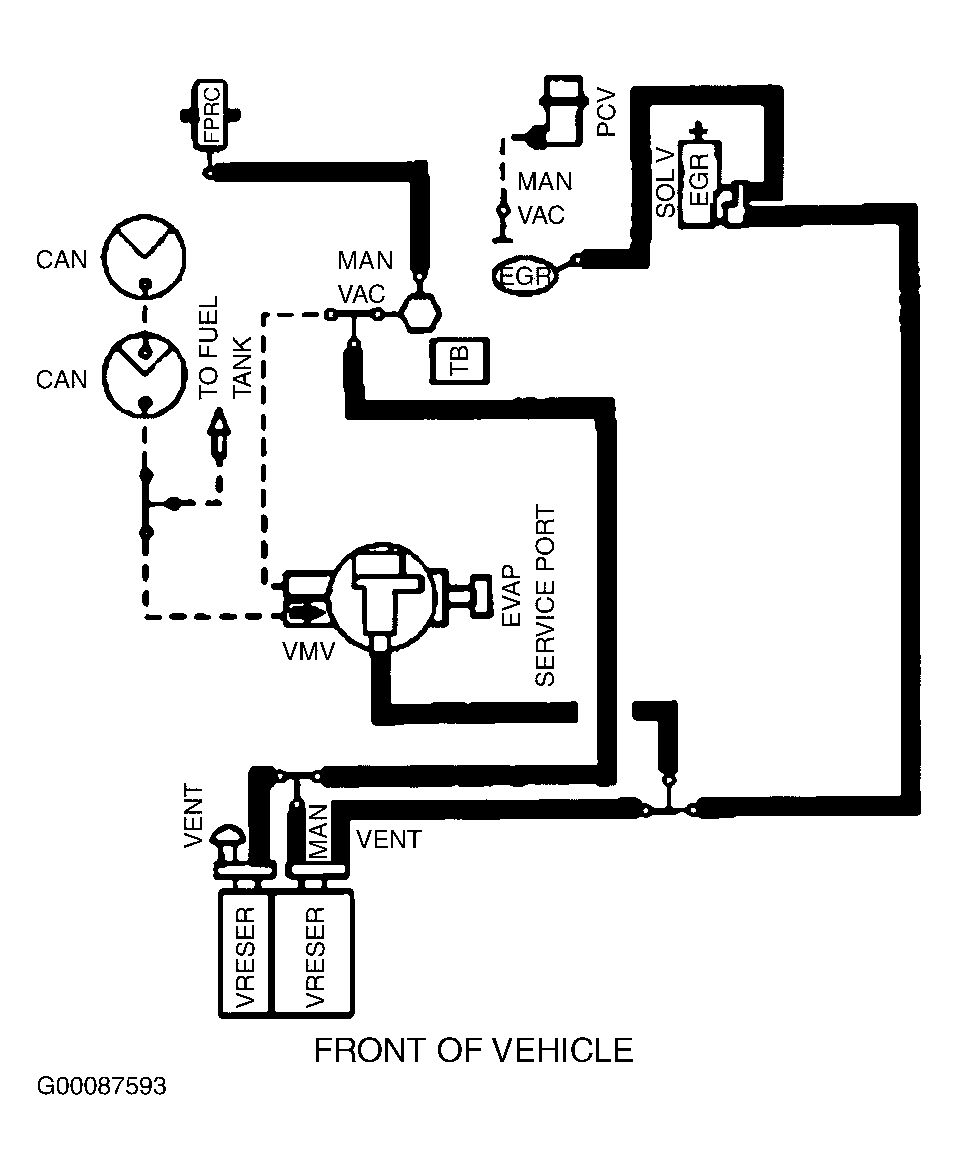

Fig 6: Vacuum Diagram (Explorer & Mountaineer - 5.0L)

Courtesy of FORD MOTOR CO.

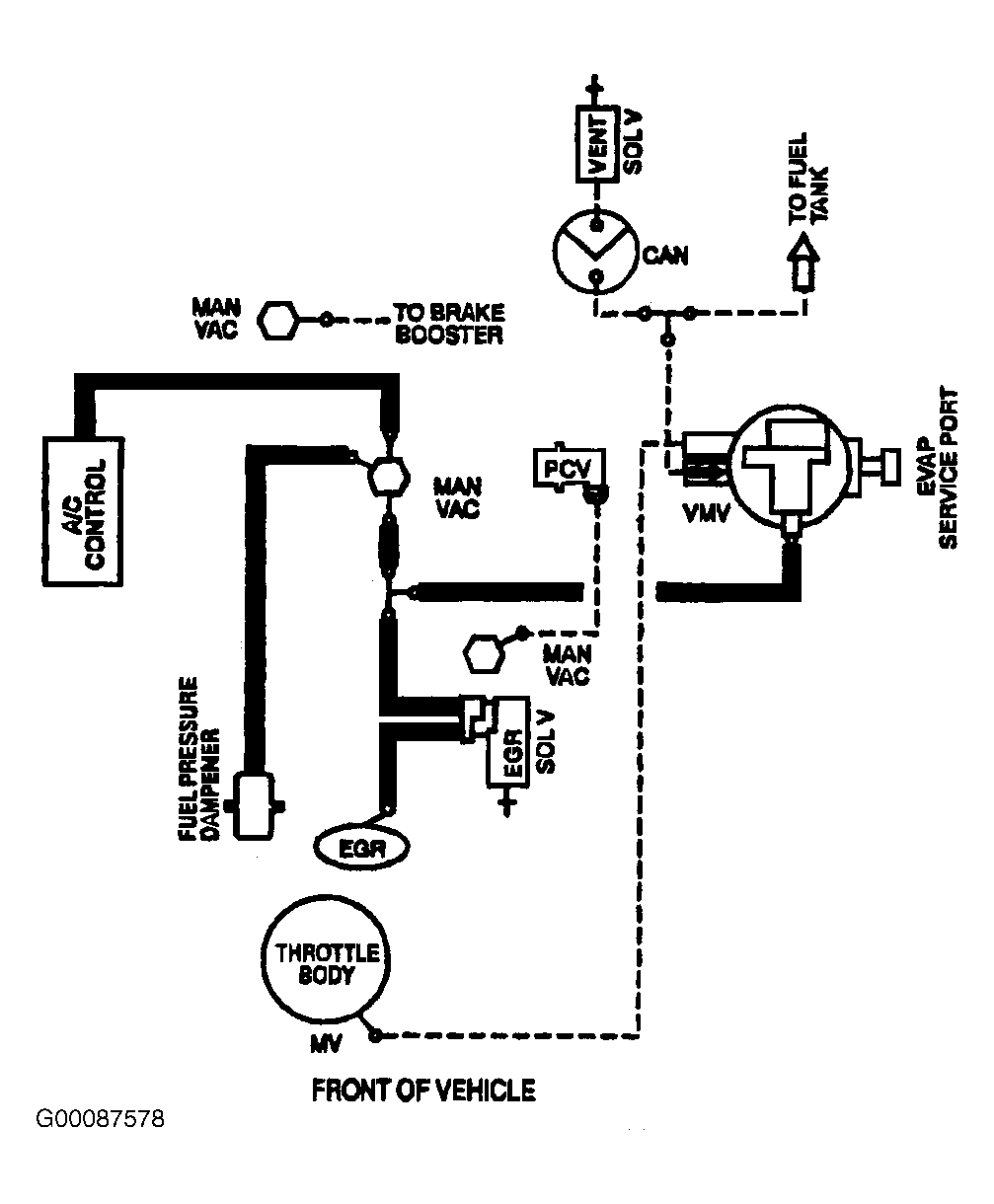

Fig 7: Vacuum Diagram (F-150 - 4.2L)

Courtesy of FORD MOTOR CO.

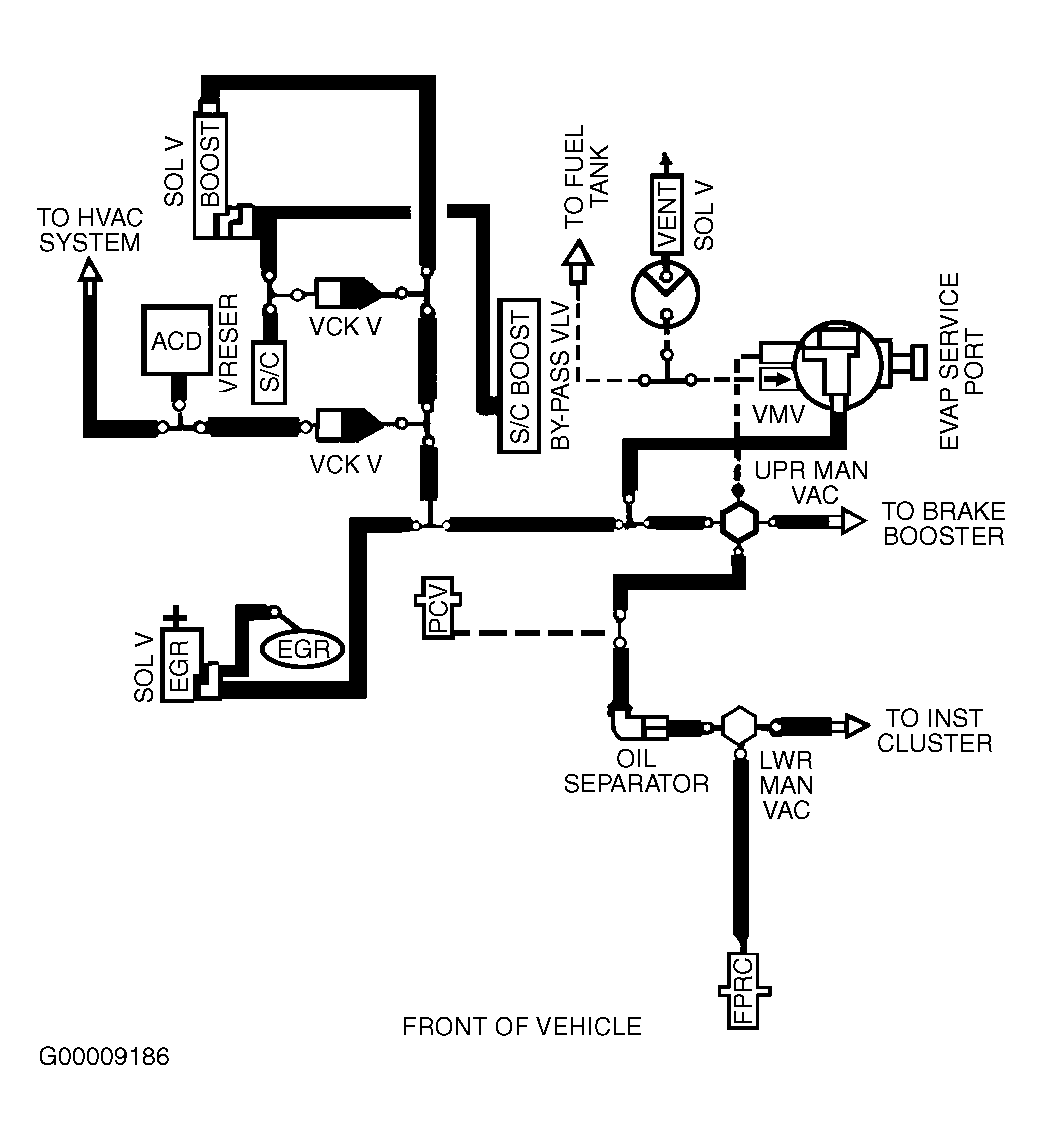

Fig 8: Vacuum Diagram (F-150 - 5.4L Supercharged)

Courtesy of FORD MOTOR CO.

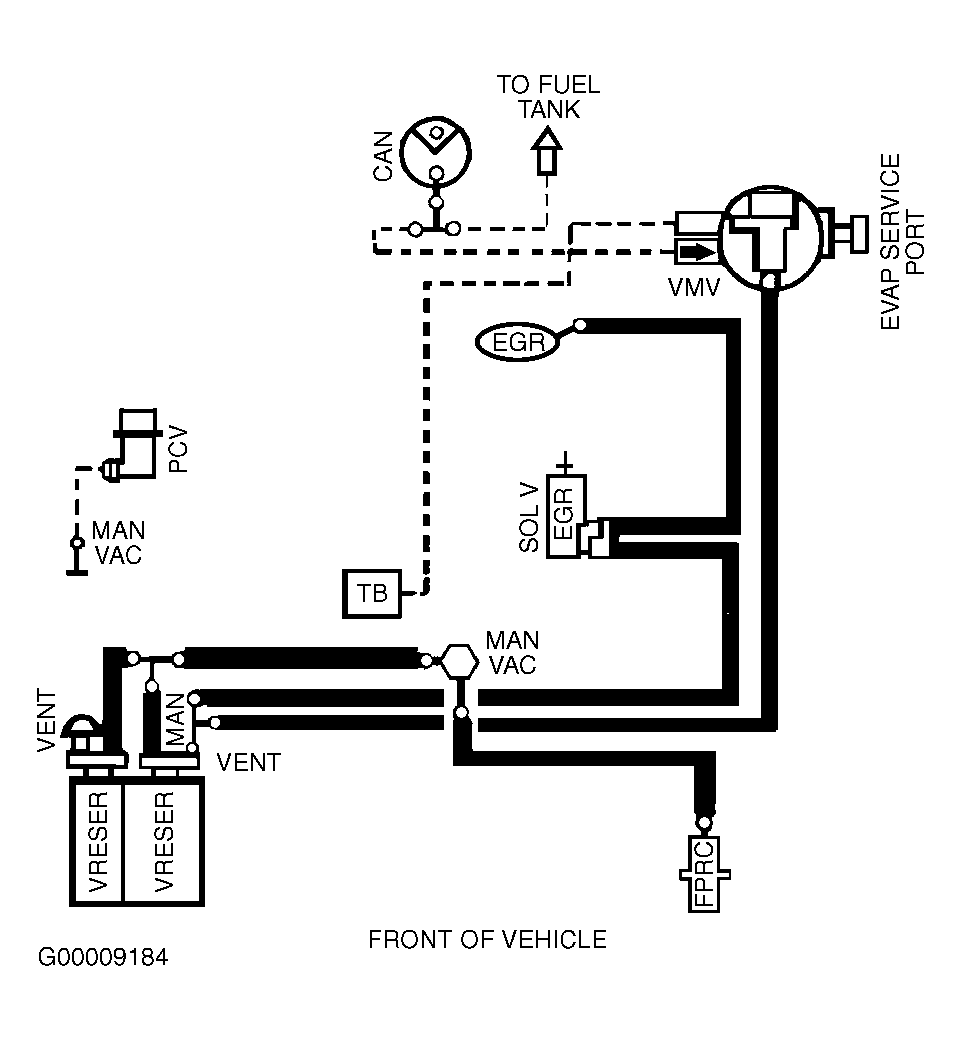

Fig 9: Vacuum Diagram (F-250, Super Duty & Van - 5.4L Natural Gas)

Courtesy of FORD MOTOR CO.

Fig 10: Vacuum Diagram (F-250 - 5.4L Super Duty & 6.8L, F-350 - 5.4L & 6.8L & F-450 & F-550 - 6.8L - Except Calibration Nos. 9-WAA-AIC (MCM2) & 9-WAA-AIF (MCM3))
