Removal And Install Guide Roller For Electric Step - Ar88.30-D-8503TS

Type 907

with Code T57 (Electric step loading space sliding door on the right)

Type 907

with Code T58 (Electric step in the loading compartment sliding door on the left)

Caution	Risk of injury  through cuts or scrapes on sharp-edged vehicle parts	Always wear protective gloves when working on or in the area of sharp, unburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Removing, installing
1	Remove electric step.	Type 907	AR88.30-D-8500TS

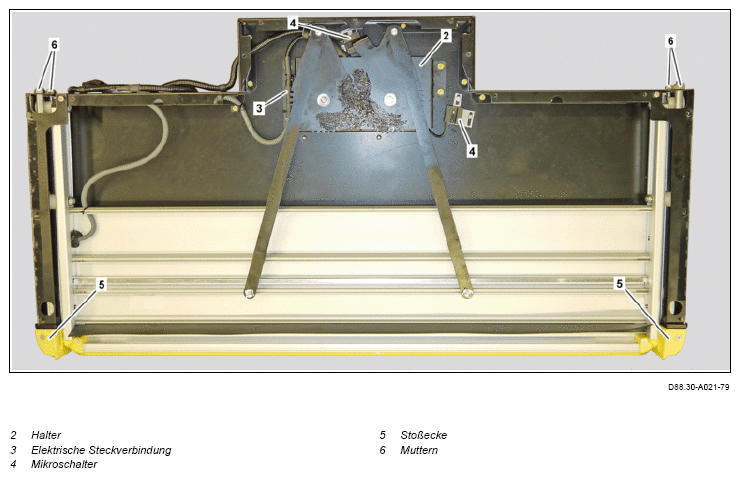

2	Remove the holder (2) and put it to one side.		AR88.30-D-8504TS
		Do not remove the electric motor from the holder (2).
3	Remove the microswitches (4) and put them to one side.	Type 907	AR88.30-D-8507TS
4	Remove the corner pieces (5).	Type 907 Bolt corner to step	*BA88.30-N-1010-02TS
5	Muttern (6) abbauen.	Hold the threaded rods.
6	Schrauben (7) herausdrehen.	Typ 907 Screw the rear housing cover to the upper part of the housing	*BA88.30-N-1011-02TS
7	Remove sleeves (8).
8	Unscrew the screws (9).

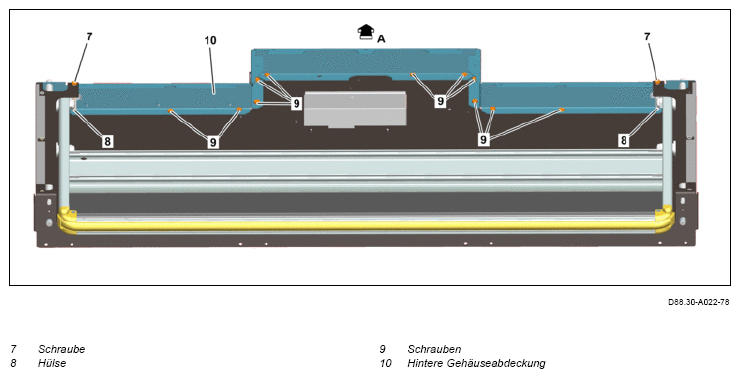

9	Remove the rear housing cover (10) in the direction of the arrow (arrow A).

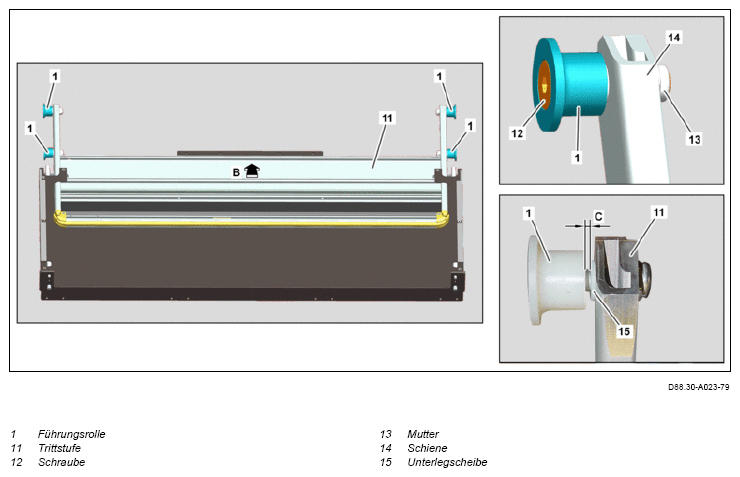

10	Pull the step (11) out of the housing in the direction of the arrow (arrow B) until the corresponding guide roller (1) is accessible.
11	Hold the screw (12) of the corresponding guide roller (1) and remove the nut (13).
	Notes on self-locking screws and nuts		AH00.00-N-0001-01A
		Typ 907 Screw connection guide roller to rail	*BA88.30-N-1009-02TS
12	Unscrew the screw (12) and remove the guide roller (1) with washer (15).	Installation:  Turn screw (12) in until the dimension (C) between the guide roller (1) and the washer (15) is 2 mm. Otherwise the electric step may malfunction.
13	Install in reverse order.
