Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-S-9998TRJ

Engine 274 in model 447.6/7

with code XM0 (Facelift)

Courtesy of MERCEDES-BENZ USA

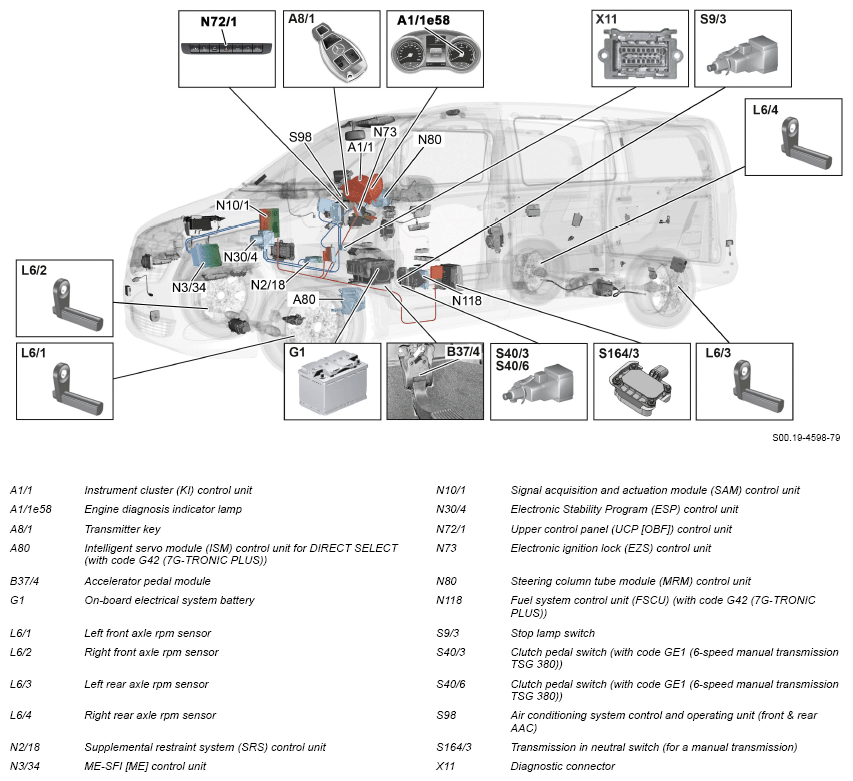

Shown with code GE1 (6-speed manual transmission TSG 380) or with code G42 (7G-TRONIC PLUS)

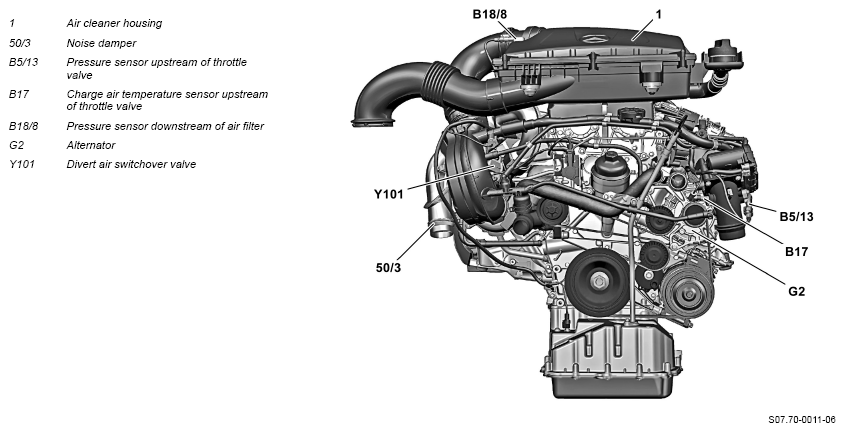

Engine front view

Courtesy of MERCEDES-BENZ USA

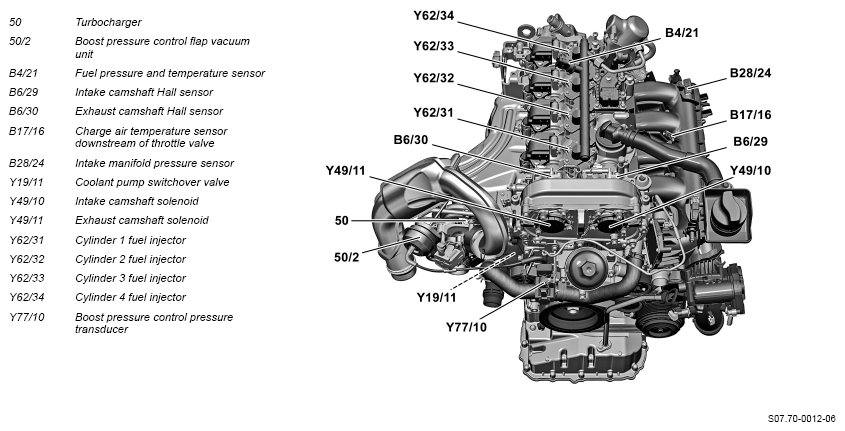

View of the engine from above

Courtesy of MERCEDES-BENZ USA

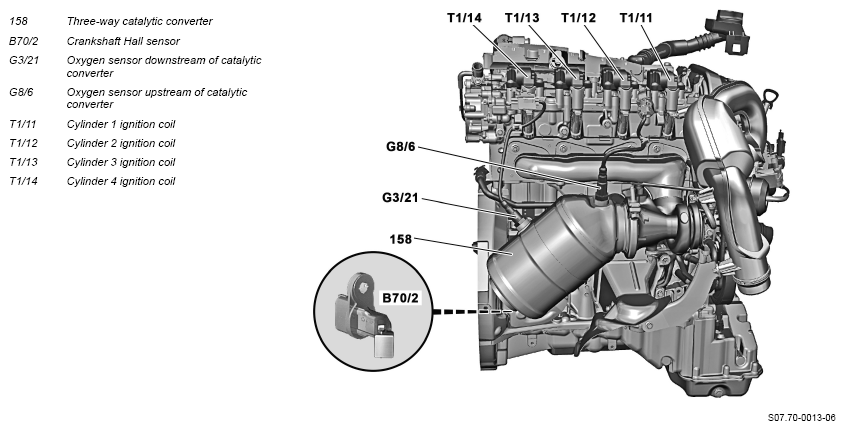

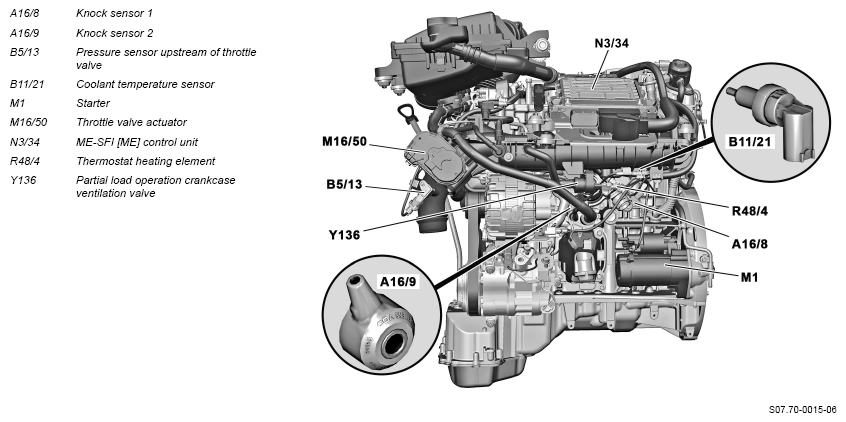

Engine right view

Courtesy of MERCEDES-BENZ USA

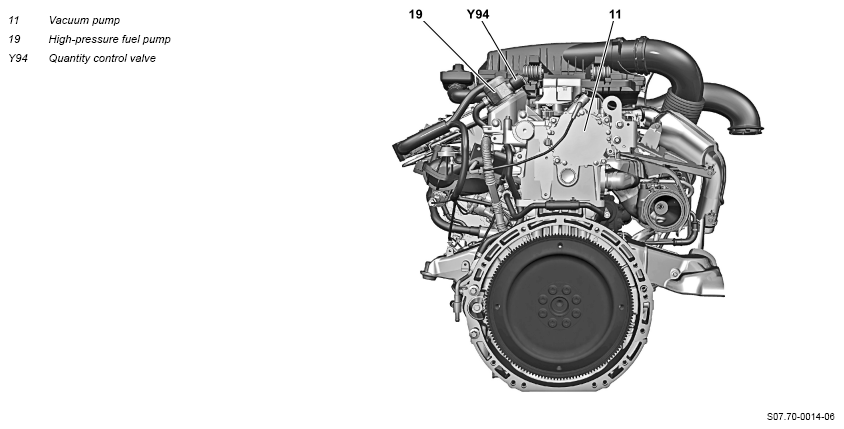

Engine rear view

Courtesy of MERCEDES-BENZ USA

View of engine from the left

Courtesy of MERCEDES-BENZ USA

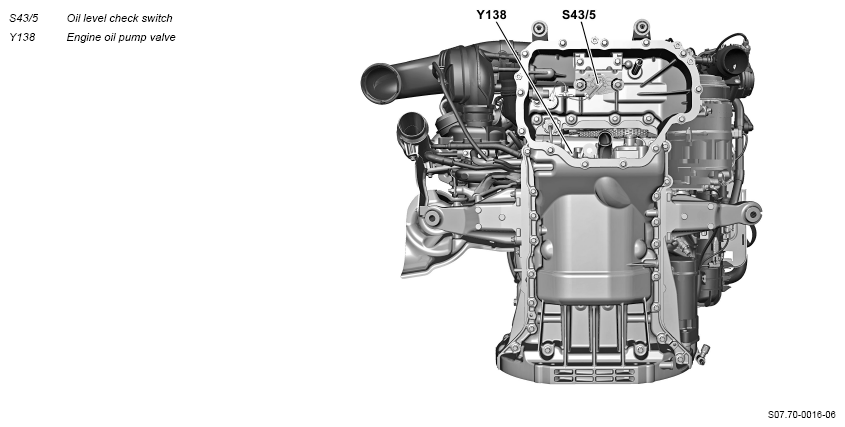

Bottom view of engine

Courtesy of MERCEDES-BENZ USA

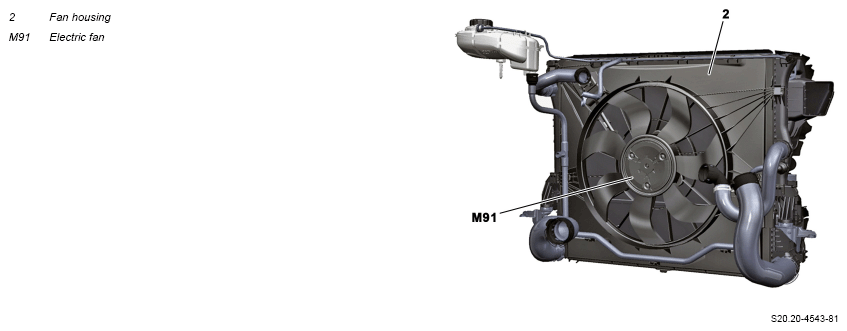

View of the radiator from the rear

Courtesy of MERCEDES-BENZ USA

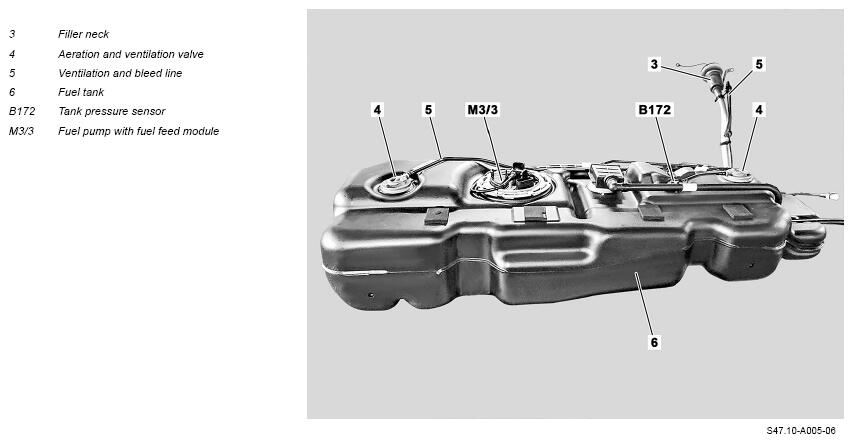

Fuel tank (6)

Courtesy of MERCEDES-BENZ USA

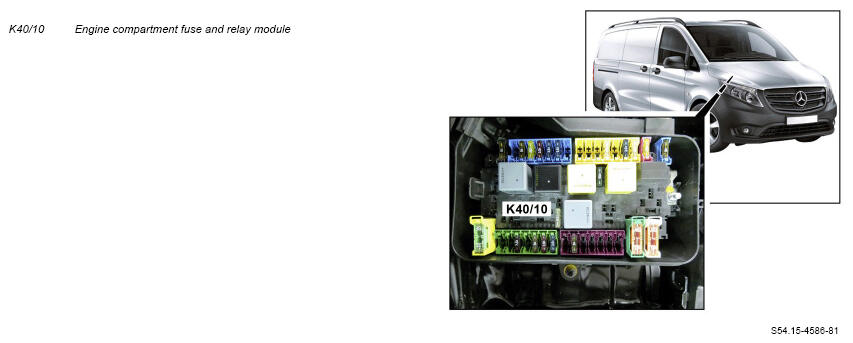

View of right side of engine compartment

Courtesy of MERCEDES-BENZ USA

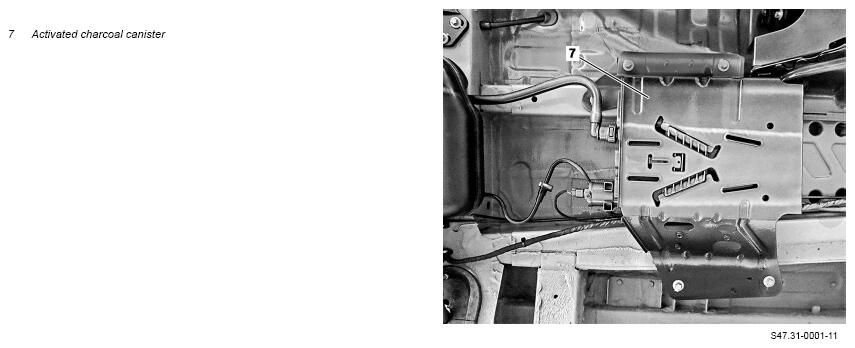

View of wheel arch from rear right

Courtesy of MERCEDES-BENZ USA
