Windshield washer, function - GF82.35-P-3002GZ

MODEL 164.1 /8

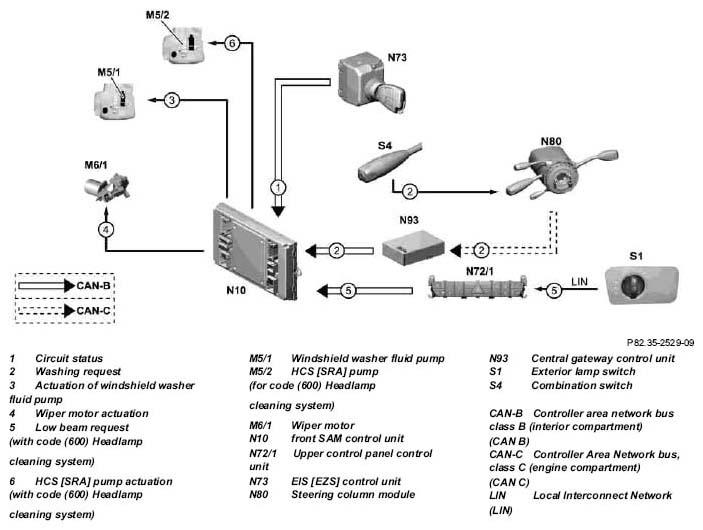

Fig 1: Windshield Washer Function Diagram
G05260257Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function requirements:

Function

The function "washing" is activated by pressing the combination switch beyond the catch point. The steering column module reads in the request and forwards it over CAN-C to the central gateway control unit. This routes the signal over the CAN-B to the front SAM control unit. The front SAM control unit then directly actuates the window washer fluid pump.

Follow-up wiping

Afterwiping becomes active as soon as the combination switch is no longer activated. The number of afterwipe cycles is dependent on the operation time of the combination switch.

If the windshield washer fluid pump is requested for an activation time of less than 1 second, a single afterwipe takes place.

If the initial activation time is greater than 1 second, 3 wiper cycles are performed. If, during this afterwipe period, another wipe is requested, 3 afterwipes are performed.

IMPORTANT With a continuous request for the windshield washer fluid pump for t > 15 s a "stuck button" is detected and the actuation is then interrupted.

Automatic actuation of the headlamp cleaning system (HCS [SRA]) (with code (600) Headlamp cleaning system)

The headlamp cleaning system pump is automatically actuated by the front SAM control unit on vehicles up to 31.5.07 with low beams switched on and after fifteen actuations and for vehicles as of 1.6.07 after five actuations (time interval between each individual actuation t > 2.5 s).

In response to each request an internal counter in the front SAM control unit is incremented by one until it reaches the value of fifteen (up to 31.5.07) or the value of five (as of 1.6.07). The headlamp cleaning system pump is then actuated and the counter reset to "zero".

IMPORTANT The internal counter is also reset to zero at circuit 15 OFF or low beams OFF.

Telescopic nozzle component description With code (600) Headlamp cleaning system GF82.15-P-2150GZ
Rain/light sensor, component description B38/2 GF54.21-P-6000GZ
Windshield washer fluid pump, component description M5/1; M5/2 With code (600) Headlamp cleaning system GF82.35-P-5000GZ
Wiper motor - Component description M6/1, M6/4 GF82.30-P-5010GZ
Front SAM control unit, component description N10 GF54.21-P-7010GZ
Upper control panel control unit, component description N72/1
With code (489) AIRmatic (air suspension with level adjustment and adaptive damping system (ADS) and without code (430) Offroad package		 GF54.21-P-6040GZ
  With code (489) AIRmatic (air suspension with level adjustment and adaptive damping system (ADS) and code (430) Offroad package and without code (494) USA version GF54.21-P-6040GZE
  With code (489) AIRmatic (air suspension with level adjustment and adaptive damping system (ADS) and code (430) Offroad package and code (494) USA version GF54.21-P-6040GZU
  Model 164.8 with code (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS) and code (494) USA version GF54.21-P-6040GZA
Electronic ignition/starter switch control unit (EIS), component description N73 GF80.57-P-6000GZ
Steering column module component description N80 GF54.21-P-6050GZ
Central gateway control unit, component description N93 GF54.21-P-4170GZ
Combination switch, component description S4 GF82.30-P-5000GZ
