Combination switch component description - GF82.30-P-5000GZ

MODEL 164

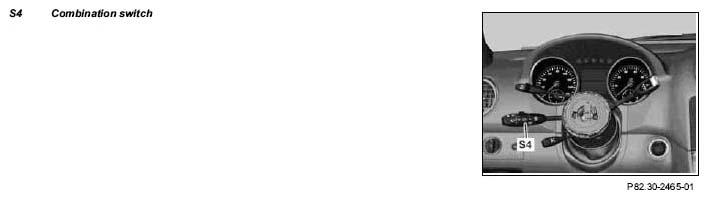

Fig 1: Identifying Combination Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The combination switch is mounted on the steering column. It is connected directly to the steering column module (N80).

Task

The combination switch controls the following functions:

Turn signals, high and low beams, headlamp flasher, windshield wipers and windshield washer.

The signals are read in by the steering column module and made available via CAN class B for the respective control units.
