Air conditioner housing, location/task/design/function - GF83.40-P-2105P
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203.0 /2 /7 up to 31.5.01 with CODE (580) Air conditioning (or Tempmatic for USA)
MODEL 203.0 /2 /7 as of 1.6.01 with CODE (580) Automatic air conditioning
MODEL 203.0 /2 /7 as of 24.4.04 except CODE (581) Comfort automatic air conditioning

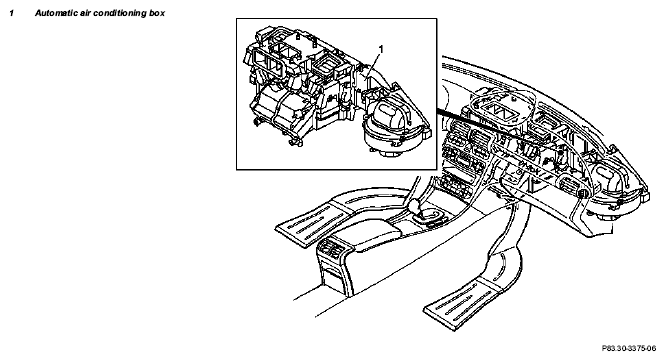

| Automatic air conditioning box, location | The automatic air conditioning box (1) is below the instrument panel. | ||
| Automatic air conditioning box, purpose | GF83.40-P-2105-03P | ||
| Automatic air conditioning box, design | GF83.40-P-2105-04P | ||
| Automatic air conditioning box function | GF83.40-P-2105-02P |
