Backup lamp actuation, function - GF82.10-P-3011B
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203 with TRANSMISSION 716

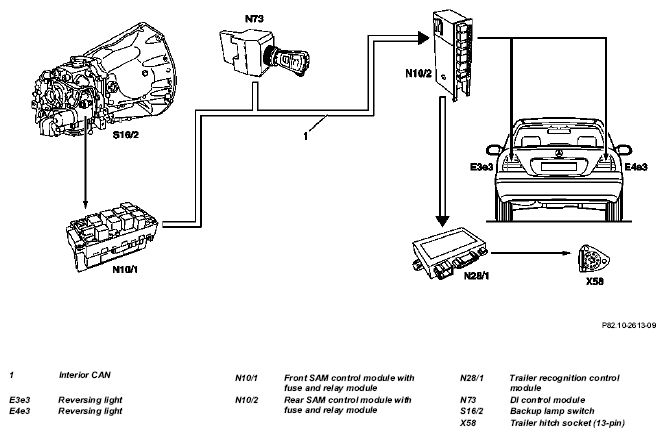

Function for reversing lamp actuation with transmission 716
Operating procedure
Basic conditions:
- The transmitter key (A8/1) in the electronic ignition switch of the electronic ignition switch control module (N73) is set to the "circuit 15R ON" position.
- The gearshift lever is set to the applied position "R" (reverse gear ON).
- The backup lamp switch (S16/2) notifies the front SAM control module with fuse and relay module (N10/1) "reverse gear ON".
- The front SAM control module with fuse and relay module (N10/1) converts the signal and notifies the rear SAM control module with fuse and relay module (N10/2) over the CAN interior "backup lamp ON".
- The rear SAM control module with fuse and relay module (N10/2) actuates the backup lamps (E3e3 and E4e4).
- For a trailer hitch the "backup lamp ON" signal is also sent over the CAN interior to the trailer recognition control module (N28/1) and voltage applied to the trailer backup lamps to the trailer hitch socket, 13-pin (X58).
| Front SAM control module with fuse and relay module, location/task/design | GF54.21-P-4108PP | ||
| Rear SAM control module with fuse and relay module, location/task/design/function | GF54.21-P-4115PP | ||
| Trailer recognition control module, location/task | With code 550 (trailer hitch) | GF82.10-P-2106S |
