Trailer recognition control module, location/task - GF82.10-P-2106S

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODELS 203, 220 except CODE (550) Trailer hitch

Shown on model 203

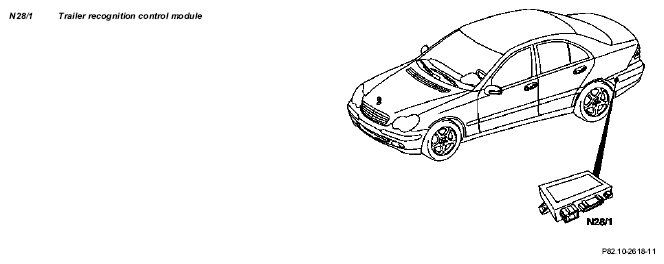

Fig 1: Identifying Trailer Recognition Control Module - Shown On Model 203

Trailer recognition control module, position	The trailer recognition control module (N28/1) is located at the rear on the left side.
	Model 220	GF82.10-P-2106-01S
Trailer recognition control module (N28/1), task	Evaluation of the signals of the CAN interior and the microswitch for trailer recognition (model 220 to 4.99) Detects when a trailer has been coupled Actuation of the trailer lights Monitors the trailer and the trailer coupling
