Distronic Plus including BAS Plus and Park Assist, function - GF30.30-P-0004SX

ENGINE 156, 273, 275 in MODEL 216 with CODE (233) Distronic Plus up to Model Year 08 /AEJ 07

ENGINE 156, 272, 273, 275, 642, 629 in MODEL 221 with CODE (233) Distronic Plus up to Model Year 08 /AEJ 07

DISTRONIC PLUS operation

The systems described below belong to the drive assist systems and are offered as special equipment (SA) under the designation "DISTRONIC PLUS including BAS PLUS and Park Assistant", code 233.

Beyond conventional cruise control functions this special equipment includes the following functions:

• DISTRONIC PLUS
• Distance warning system
• BAS PLUS
• Park Assist
• PRE-SAFE brake (from 09/2006)
• Park Guidance (from 12/2006)
• Automatic deactivation of the radar sensor system (from 08/2007)
• Blind spot assistant (from 08/2007 for special equipment code 234)

DISTRONIC PLUS

DISTRONIC PLUS (DTR PLUS) uses radar sensors to keep the vehicle at a specified target distance from the preceding vehicle (the target distance is set by the driver) and provides visual and acoustic warnings to the driver before dangerous situations arise. The electronic system automatically activates the brakes when the distance to the preceding vehicle decreases, and accelerates automatically back to the stored target speed as soon as the traffic situation allows.

Distance warning system

The proximity warning system (AWS) is an additional function of DISTRONIC PLUS.

The driver can activate or deactivate the distance warning system separately via a menu in the instrument cluster (A1) independently of the DISTRONIC PLUS distance control.

BAS PLUS

The function BAS PLUS is an additional function of the Brake Assist System (BAS), which assists the driver by means of specific calculations of the brake force. The current danger zone and the closing speed are constantly monitored. If the driver is forced to brake suddenly due to traffic, BAS PLUS ensures a quick buildup of the brake pressure calculated for the situation in hand.

PRE-SAFE brake

The PRE-SAFE brake (also known as the Collision Mitigation System (CMS)) is an additional function of DISTRONIC PLUS which supports the safety concept PRE-SAFE.

The PRE-SAFE brake permanently determines the potential danger of a collision occurring and initiates appropriate measures to warn of an impending collision and possibly to mitigate the effects of a collision in critical situations.

Park Assist

The Park Assist helps the driver when parking with visual distance displays in the instrument cluster and on the rear headliner. In addition, acoustic distance warning signals alert the driver to impending collisions.

Park Guidance

The function Parking Guidance (also known as Advanced Parking Guidance (APG)) assists the driver to find an adequately long parking space and to optimally park in this space. The driver is himself responsible for estimating (plausibility) the parking gap found as well as for maneuvering of the vehicle longitudinally and laterally.

Blind Spot Assist

The blind spot assistant (also known as Blind Spot Monitoring (BSM)) supports the driver in secure execution of a lane change. In the process the Blind Spot Assistant supplies important information about the events in the rear and side area of the vehicle where the inside rearview mirror and the two outside mirrors do not offer adequate visibility (blind spots).

Automatic shutoff of the radar sensor system

Due to legal requirements on the 24 GHz radar system (short range radar) the radar sensor system from 08/2007 is automatically switched off in certain protected areas around radio astronomy stations (RAS).

Recognition of whether the vehicle is in a protected area takes place using the GPS navigation system.

Radar sensor system

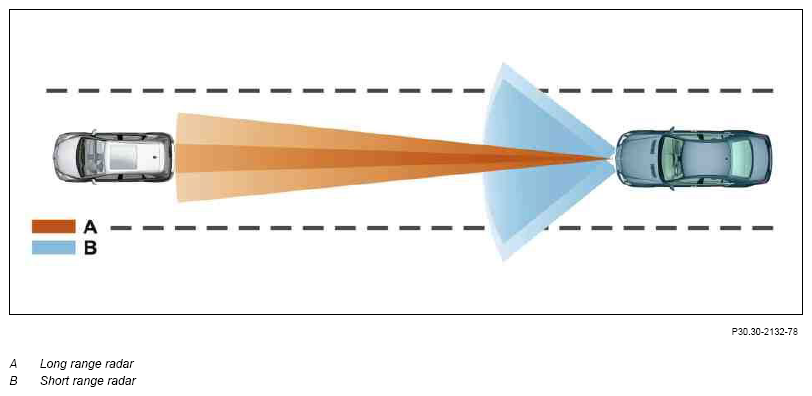

In order to handle these extensive tasks, the previously used 77 GHz long range radar (DISTRONIC) is supplemented by the newly developed 24 GHz short range radar (DISTRONIC PLUS).

These new driver assistance systems improve driving safety and offer the driver substantial bonuses in terms of comfort and convenience. This helps to reduce the frequency of accidents and to minimize their consequences.

	Distronic Plus including BAS Plus and Park Assist, location of components		GF30.30-P-0004-01SX
	Distronic Plus including BAS Plus and Park Assist, display and operating elements		GF30.30-P-0004-02SX
	Distronic Plus including BAS Plus and Park Assist, function schematic		GF30.30-P-0004-03SX
	DISTRONIC PLUS including BAS PLUS and Park Assist radar sensor system		GF30.30-P-0004-04SX
	Variable Speed Limiter, function	Except code 494 USA version	GF30.30-P-3001SX
	Permanent speed limiter, function		GF30.30-P-3002SX
	Shutoff and switching on of radar sensor system, function		GF30.30-P-3120SX
	DISTRONIC PLUS, function		GF30.30-P-3300SX
	BAS PLUS, function		GF30.30-P-3310SX
	Park Assist, function		GF54.65-P-2320SX
	Distance warning system, function		GF54.70-P-2000SX
	PRE-SAFE brake, function	From 09/2006	GF30.30-P-3340SX
	Parking Guidance, function	From 12/2006	GF54.65-P-2310SX
	Blind Spot Monitor, function	For code 234 blind spot assistant	GF54.71-P-4000SX
