Power flow in 6th gear, function - GF27.10-P-3021N

TRANSMISSION 722.9 in MODEL 171.4, 203, 230 up to Model Year 8

TRANSMISSION 722.9 in MODEL 209, 211, 215, 219, 220

TRANSMISSION 722.9 in MODEL 463.303/340/341

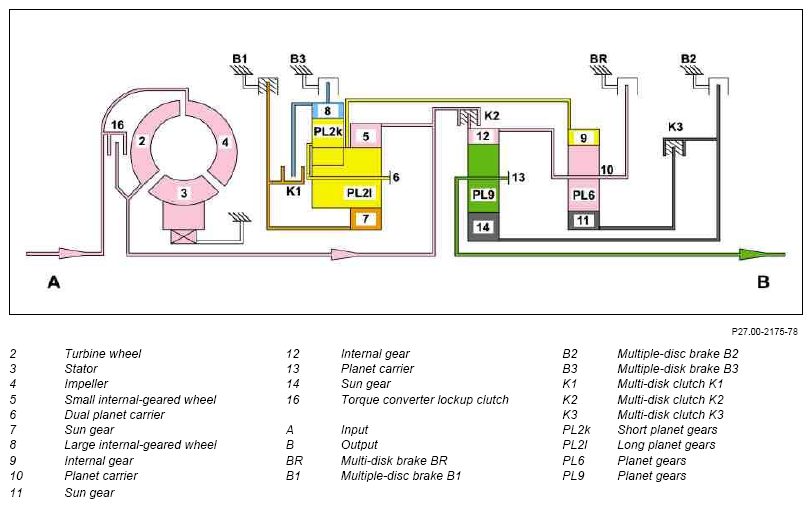

Fig 1: Power Flow In 6th Gear Function Chart

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The Ravigneaux gear set consists of the following components:

Short planet gears (PL2k)
Long planet gears (PL2l)
Small internal-geared wheel (5)
Dual planet carrier (6)
Sun gear (7)
Large internal-geared wheel (8)

The single front planetary gear system consists of the following components:

Planet gears (PL9)
Internal-geared wheel (12)
Planet carrier (13)
Sun gear (14)

The single rear planetary gear system consists of the following components:

Planet gears (PL6)
Internal-geared wheel (9)
Planet carrier (10)
Sun gear (11)

Power flow in 6th gear, function

The following multi-disk brakes and multi-disk clutches are engaged:

Multi-disk brake B1 (B1)
Multi-disk clutch K2 (K2)
Multi-disk clutch K3 (K3)

Ravigneaux gear set

The small internal-geared wheel (5) is driven by the transmission input shaft. The long planet gears (PL2l) roll over the stalled sun gear (7) and transmit the increased torque and reduced rotational speed as a result to the dual planet carrier (6).

Rear single planetary gear system

The internal-geared wheel (9) rotates at the same speed due to the mechanical connection to the dual planet carrier (6). The planet gears (PL6) transmit the rotary motion to the sun gear (11). Sun gear (11) passes on the rotational speed to sun gear (14) via the closed multi-disk clutch K3 (K3).

Single front planetary gear system

The transmission input torque and transmission input speed are transmitted to the internal-geared wheel (12) by the closed multi-disk clutch K2 (K2). An increased RPM and a reduced torque occurs due to the RPM difference between the sun gear (14) and the ring gear (12). These are passed on via the planet carrier (13) to the transmission output shaft.

The transmission output shaft therefore rotates in the direction of rotation of the engine at reduced RPM relative to the transmission input shaft.
