Multi-disk brake, location/task/design - GF27.51-P-5104N
TRANSMISSION 722.9 in MODEL 171.4, 203, 230 up to Model Year 8
TRANSMISSION 722.9 in MODEL 209, 211, 215, 219, 220
TRANSMISSION 722.9 in MODEL 463.303/340/341

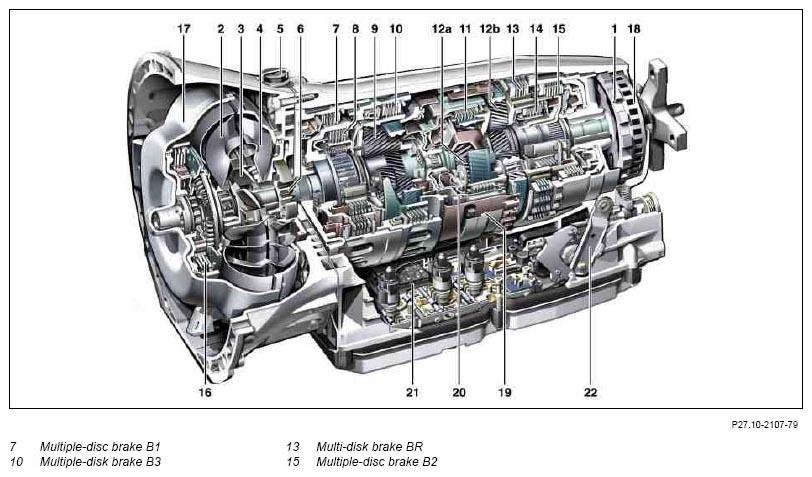

| Multi-disk brake, location | 4 multi-disk brakes made up of multi-disk brake B1 (7), multi-disk brake B3 (10), multi-disk brake BR (13) and multi-disk brake B2 (15) are arranged in the planetary gear systems in the transmission housing. | |
| Multi-disk brake, task | To support the ring gear, sun gear or planet carrier of a planetary gear set relative to the transmission housing, to transmit the drive torque. | |
| Multi-disk brake, design | GF27.51-P-5104-03N |
