Multifunction steering wheel, function - GF82.90-P-0001A: Notes

MODEL 220 up to 31.8.03 with CODE (494) USA version with CODE (498) Japan version

Multifunction steering wheel shown

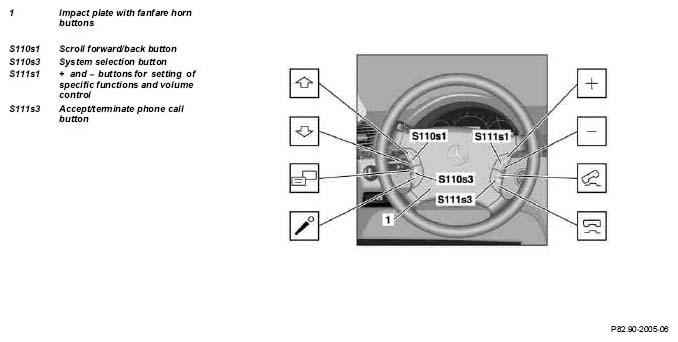

Fig 1: Identifying Multifunction Steering Wheel
G04841111

General information

The multifunction steering wheel serves to increase active driving safety in road traffic in combination with the instrument cluster (A1). This allows the driver to concentrate on the traffic without distraction when controlling and operating various vehicle components (for example: CD changer, telephone).

The multifunction steering wheel allows the driver to control and call up the following systems without taking his hands off the steering wheel:

The main system selected by the driver is displayed in the multifunction display (A1p13) on the instrument cluster (A1). The fanfare horns can also be actuated via the steering wheel impact plate (1).

Keypad

Each of the systems can be actuated using the system selection button (S110s3). Each press of the button opens the next system screen in the multifunction display (A1p13). It is not possible to move backwards.

If necessary, the system selection button must be pressed repeatedly until the desired system reappears in the multifunction display (A1p13).

It is possible to "scroll" in a system with the scroll forward/back button (S110s1) to open additional submenus.

The voice control system (VCS) can also be switched on and off using the system selection and voice control system button (S110s3).

With the buttons:

The control signals are transmitted from the keypad on the steering wheel via the clock spring contact to the control unit located in the steering column module (N80).

The signals are transmitted from the steering column module (N80) via the vehicle's own bus system (interior CAN) to the instrument cluster (A1). Depending on the system shown in the display, a CAN signal for the required component (CD changer, telephone...) is generated and transmitted from here. In the COMAND operating, display and control unit (A40/3), the CAN signal is converted in such a way that the Digital Data Bus system (D2B) can relay the signals to the required device (CD changer, telephone...).

  Multifunction steering wheel, networking of components   GF82.90-P-0001-01I
  Table of contents for function description of instrument cluster (IC)   GF54.30-P-0997S
  Table of contents for function description of trip computer   GF54.50-P-0999SZ
  Table of contents for function description of fanfare horn system   GF54.35-P-0999SZ
  Cockpit management and data system (COMAND), function Code 494 with code 352 GF82.85-P-0003B
  Digital Data Bus (D2B) function   GF82.00-P-0001A
  CAN data bus, general information, function   GF54.00-P-0005A
