Parking Lock, Location/Task/Design/Function

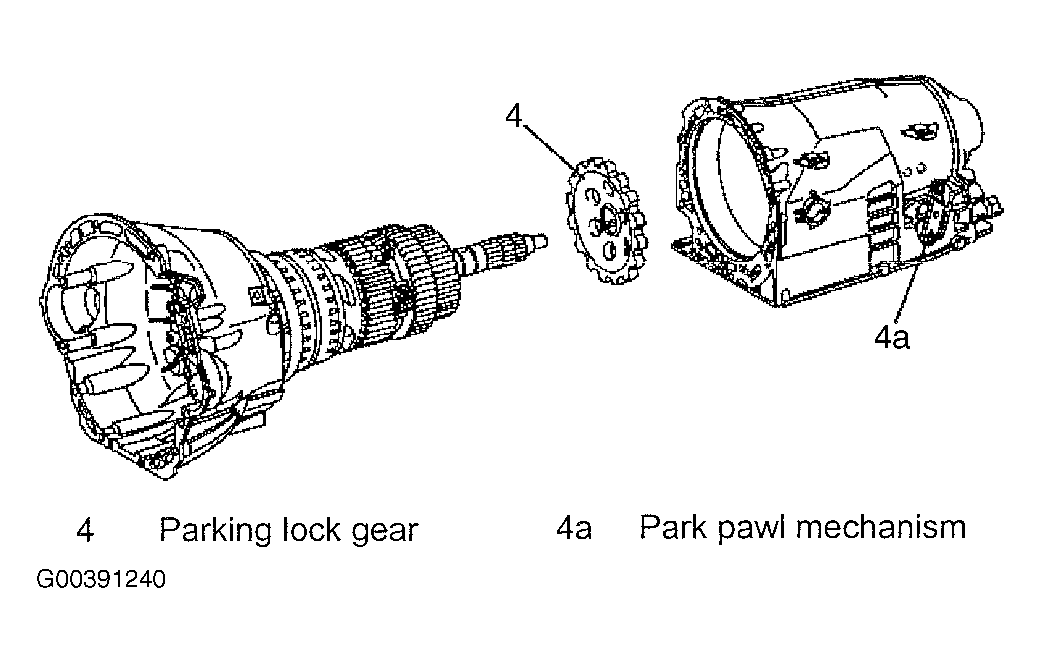

Fig 1: Parking Lock
G00391240Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

  1. Park Pawl, Location

    The park pawl gear (4) and park pawl mechanism (4b) are located in he rear section of the transmission housing. See Fig 1.

  2. Park Pawl, Task

    In addition to the parking brake, the park pawl provides extra mechanical security against the vehicle rolling away.

  3. Park Pawl, Design

    See PARK PAWL, DESIGN .

  4. Park Pawl, Function

    See PARK PAWL, FUNCTION .
