Control Rod Removal/Installation: Notes

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
2. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
4. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
5. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
6. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION .)
7. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION .)

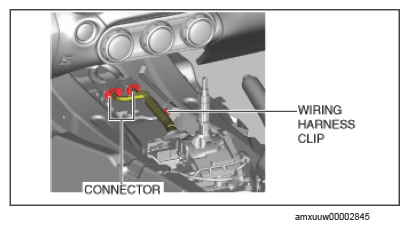

Disconnect the connector and wiring harness clip.

Courtesy of MAZDA MOTORS CORP.

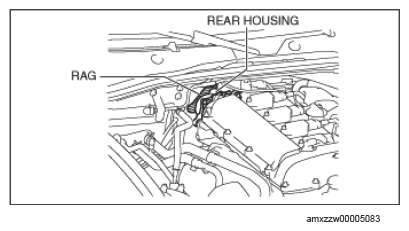

Place a clean rag behind the engine so that the engine does not contact the rear housing when it is tilted.

Courtesy of MAZDA MOTORS CORP.
Remove the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION .)
Disconnect the control rod from the selector lever component. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
Remove the tunnel member.

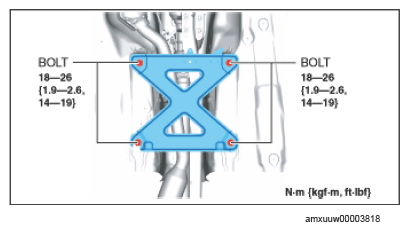

Fig 1: Tunnel Member And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Disconnect the HO2S connector. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
Disconnect the TWC from the exhaust manifold (WU-TWC). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) (See TWC INSTALLATION NOTE .)

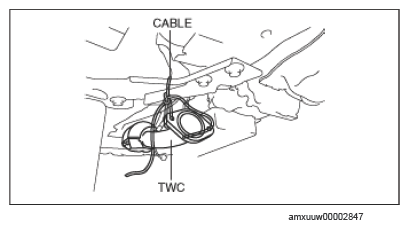

Suspend the TWC using a cable as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Remove the power plant frame. (See POWER PLANT FRAME REMOVAL [M66M-D] .) (See POWER PLANT FRAME INSTALLATION [M66M-D] .)
Tilt the transmission while being careful not to allow parts on the back of the engine to contact the vehicle body.

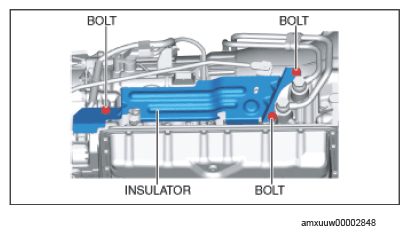

Remove the insulator. (See INSULATOR INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.

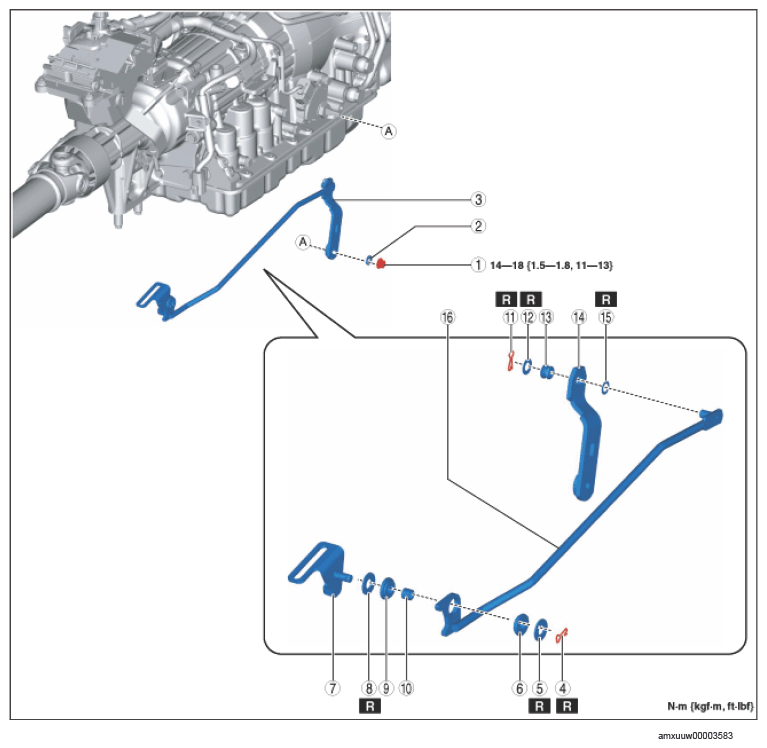

Fig 2: Automatic Transmission Shift Mechanism Components Location With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component no.	Refer to
1	Nut (See NUT, WASHER AND CONTROL ROD COMPONENT REMOVAL NOTE .) (See CONTROL ROD COMPONENT, NUT AND WASHER INSTALLATION NOTE .)
2	Washer (See NUT, WASHER AND CONTROL ROD COMPONENT REMOVAL NOTE .) (See CONTROL ROD COMPONENT, NUT AND WASHER INSTALLATION NOTE .)
3	Control rod component (See NUT, WASHER AND CONTROL ROD COMPONENT REMOVAL NOTE .) (See CONTROL ROD COMPONENT, NUT AND WASHER INSTALLATION NOTE .)
4	Snap pin
5	Washer
6	Bush
7	Bracket
8	Washer
9	Bush
10	Spacer
11	Snap pin
12	Washer
13	Bush
14	Bracket
15	Wave washer
16	Control rod
