TWC installation note

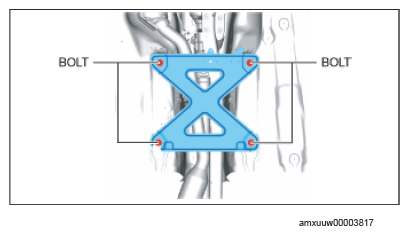

  1. Remove the tunnel member temporarily.
    G14589304Courtesy of MAZDA MOTORS CORP.
  2. Install the TWC to the exhaust manifold (WU-TWC). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
