Emergency Call Switch Removal/Installation: Notes

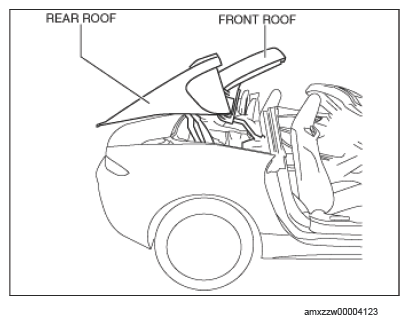

  1. Using the retractable hardtop switch, keep the front roof half-open. (retractable hardtop)
    G14602645Courtesy of MAZDA MOTORS CORP.
  2. Open the convertible top. (convertible top)
  3. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  4. Remove the A-pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
  5. Remove the female wedge. (See FEMALE WEDGE REMOVAL/INSTALLATION .)
  6. Remove the front header trim. (See FRONT HEADER TRIM REMOVAL/INSTALLATION .)

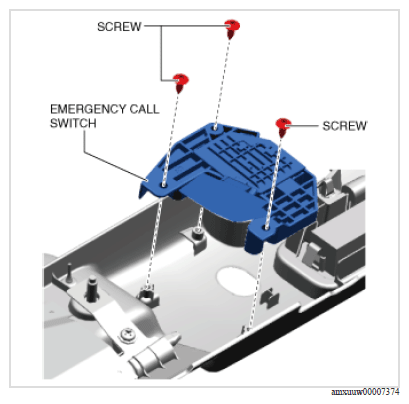

  7. Remove the screws. (See SCREW INSTALLATION NOTE .)
    G16810269Courtesy of MAZDA MOTORS CORP.
  8. Remove the emergency call switch.
  9. Install in the reverse order of removal.
