Emergency Call Switch Removal/Installation
>>
Screw Installation Note
Screw Installation Note
Tighten the screws as shown in the figure.

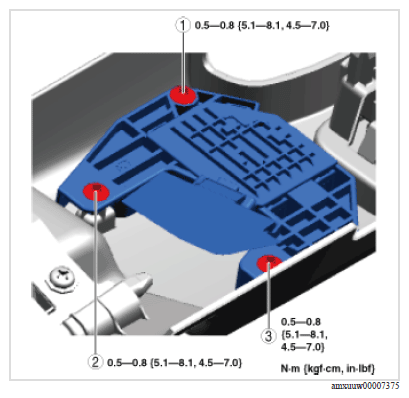

Fig 1: Emergency Call Switch Screws Tightening Sequence With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
