Body Control Module (BCM) Bracket Removal/Installation: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift lever knob (MT)
    3. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    5. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
    6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    7. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION .)
    8. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    9. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
    10. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    11. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    12. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    13. Center panel No. 2 (See CENTER PANEL No. 2 REMOVAL/INSTALLATION .)
    14. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    15. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    16. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    17. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    18. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
    19. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION .)
    20. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    21. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    22. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    23. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    24. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    25. Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION .)
    26. Center panel No. 1 (See CENTER PANEL No. 1 REMOVAL/INSTALLATION .)
    27. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)

      (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)

    28. Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    29. Dashboard (See DASHBOARD REMOVAL .) (See DASHBOARD INSTALLATION .)
    30. BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .)
  3. Remove the bolts.

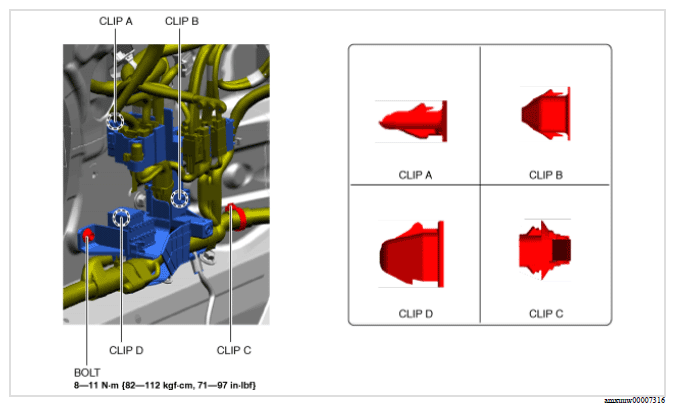

    Fig 1: Fuse Box Clips And Bolts With Torque Specifications
    G16810316Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the clips from the body and move the fuse box to a location where it will not interfere with the work.

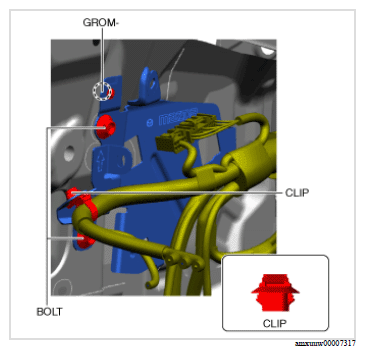

  5. Remove the bolt.
    G16810317Courtesy of MAZDA MOTORS CORP.
  6. Remove the grommet from the body.
  7. Remove the vehicle wiring harness clip.
  8. Remove the BCM bracket.
  9. Install in the reverse order of removal. (See BCM Bracket Installation Note .)
