BCM Bracket Installation Note

  1. Install the grommet to the BCM bracket.

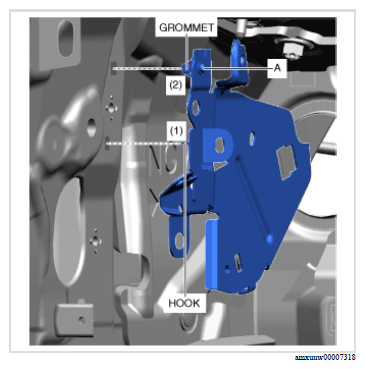

  2. Hook the hook area (1) of the bracket to the body, and push in area A until the grommet (2) is securely locked in the body hole.
    G16810318Courtesy of MAZDA MOTORS CORP.
  3. Install the bolts.
