Trunk Side Trim Removal/Installation: Notes

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    7. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    8. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    9. Rear center seat belt anchor (See REAR BUCKLE REMOVAL/INSTALLATION .)
    10. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    11. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolts.

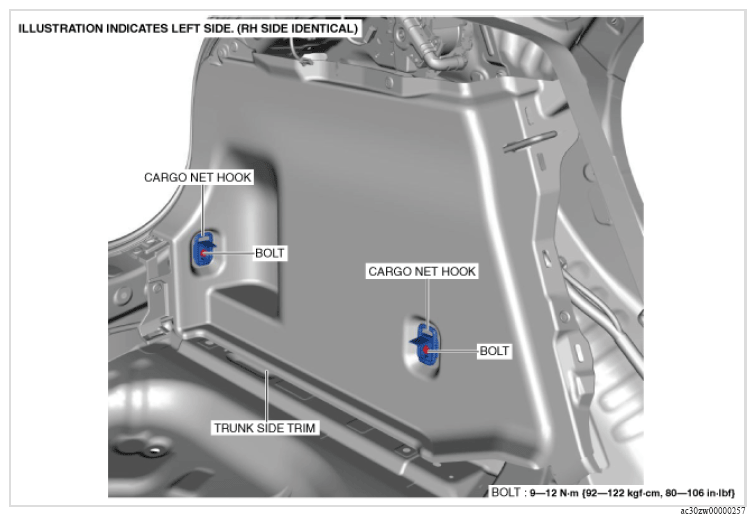

    Fig 1: Cargo Net Hooks, Trunk Side Trim And Bolts With Torque Specification
    G16377000Courtesy of MAZDA MOTORS CORP.
  4. Remove the cargo net hooks.
  5. Remove the fasteners.

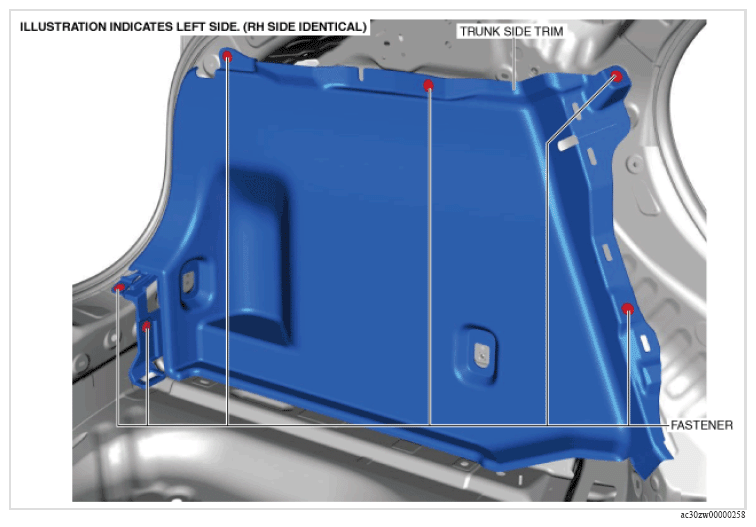

    G16377001Courtesy of MAZDA MOTORS CORP.
  6. Move the trunk side trim in the direction of the arrow shown in the figure while detaching the clip. (See TRUNK SIDE TRIM INSTALLATION NOTE .)

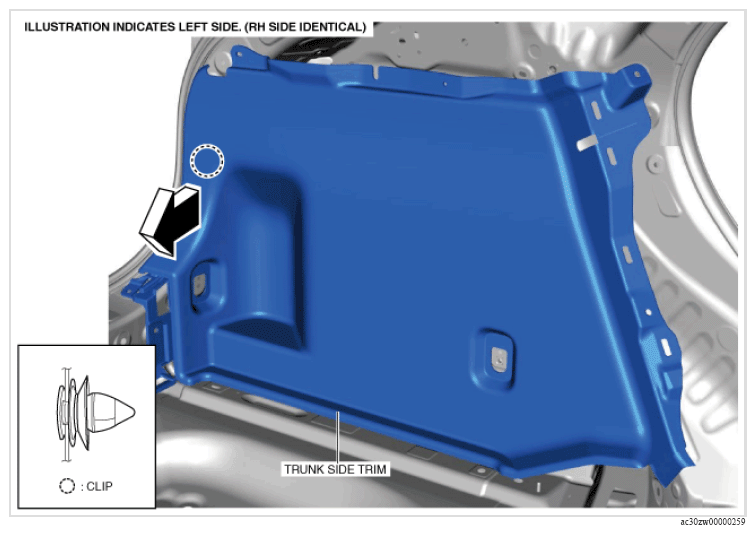

    G16377002Courtesy of MAZDA MOTORS CORP.
  7. Remove the trunk side trim.
  8. Install in the reverse order of removal.
