Trunk Board Removal/Installation
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)

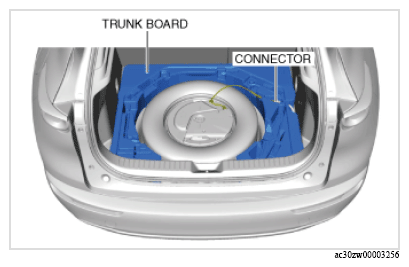

- Disconnect the connector. (with bass-box)

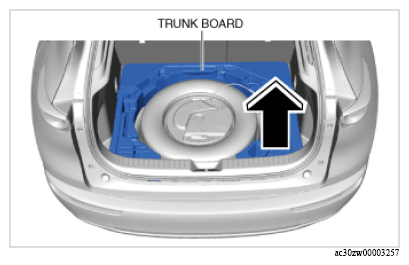

- Remove trunk board in the direction of the arrow shown in the figure.
- Install in the reverse order of removal.
