Rear Console Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

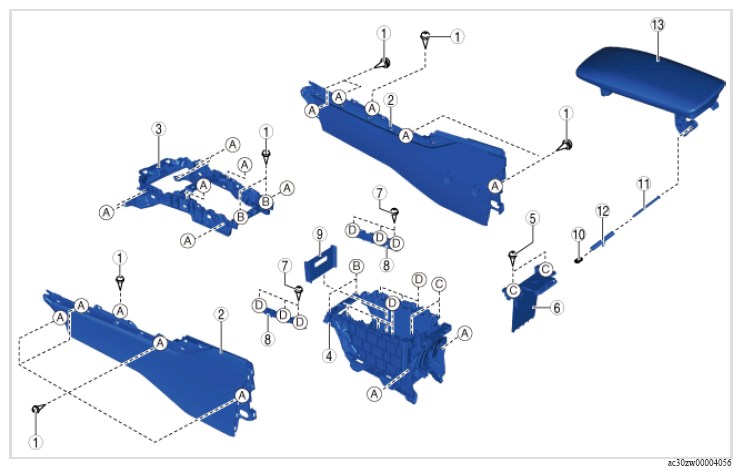

- Disassemble in the order indicated in the table.REAR CONSOLE COMPONENT OPERATION
Component No. Refer to 1 Screw 2 Console panel
(See CONSOLE PANEL REMOVAL NOTE .)3 Rear console bracket 4 Rear console box 5 Screw 6 Rear console parts 7 Screw 8 Bracket cover 9 Plate 10 Stopper 11 Pin 12 Spring 13 Rear console lid - Assemble in the reverse order of disassembly.
