Console Panel Removal Note

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

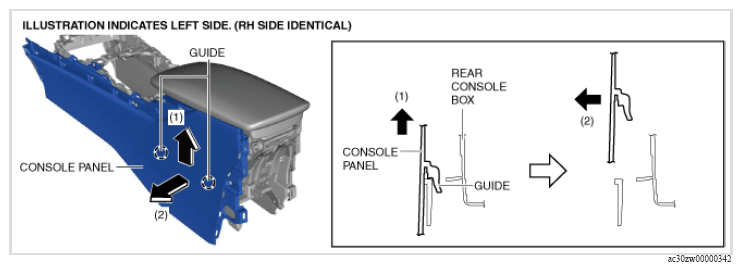

  1. Move the console panel in the order of arrows (1) and (2) shown in the figure and remove the guides from the rear console box.
G16376952Courtesy of MAZDA MOTORS CORP.
