Lower Panel Removal/Installation: Passenger-side: Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

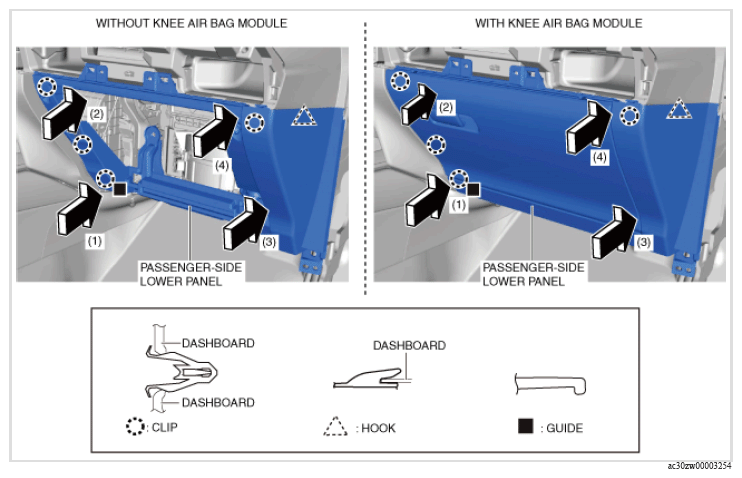

Install the clips, tab, hook, and guide while pressing the passenger-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure.

Courtesy of MAZDA MOTORS CORP.

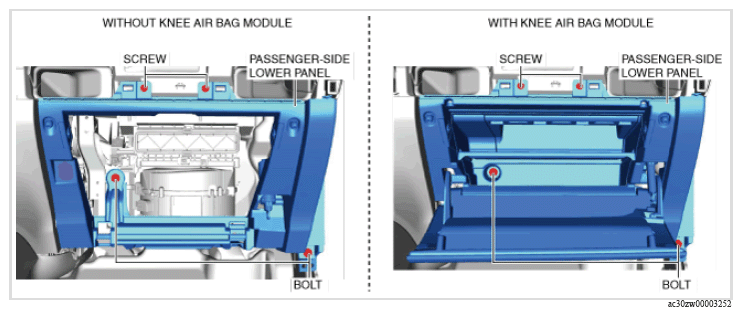

Assemble the passenger-side lower panel to the dashboard and tighten the bolts and screws temporarily.

Courtesy of MAZDA MOTORS CORP.
Install the glove compartment. (without passenger-side knee air bag module) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION WITHOUT PASSENGER-SIDE KNEE AIR BAG MODULE . )

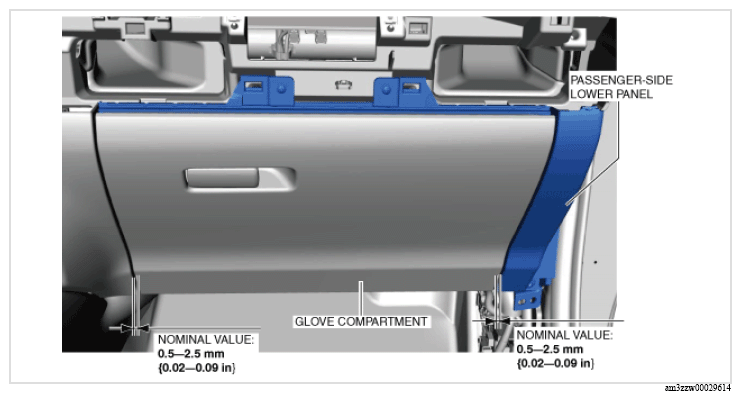

Measure the gap between the glove compartment and the passenger-side lower panel and verify that the measured value is within the nominal value. (without passenger-side knee air bag module)
- If not within the nominal value, move the passenger-side lower panel and adjust the installation position. (without passenger-side knee air bag module)
Courtesy of MAZDA MOTORS CORP.
Remove the glove compartment. (without passenger-side knee air bag module) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION WITHOUT PASSENGER-SIDE KNEE AIR BAG MODULE . )
Tighten the bolts and screws completely.

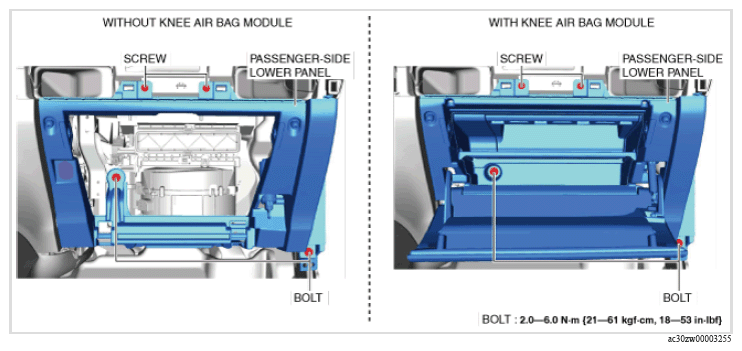

Fig 1: Passenger-Side Lower Panel, Bolts And Screws With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
2. Passenger-side decoration panel (See PASSENGER-SIDE DECORATION PANEL REMOVAL/INSTALLATION .)
3. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
4. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
5. Glove compartment (without passenger-side knee air bag module) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION WITHOUT PASSENGER-SIDE KNEE AIR BAG MODULE . )

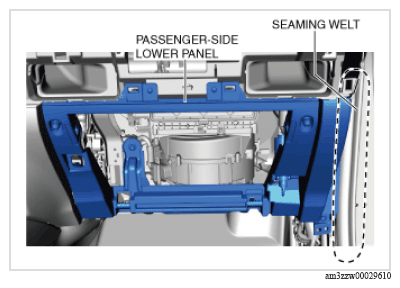

Install the seaming welt.

Courtesy of MAZDA MOTORS CORP.
