Front Side Trim Removal/Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)

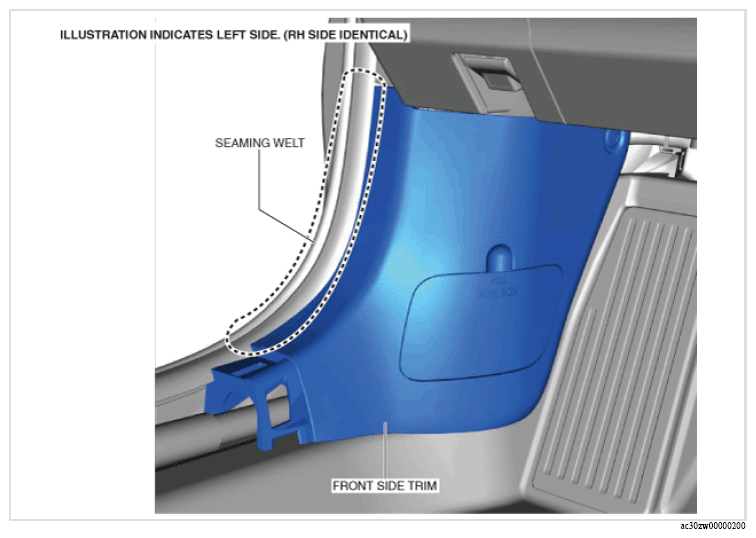

Partially peel back the seaming welt.

Courtesy of MAZDA MOTORS CORP.

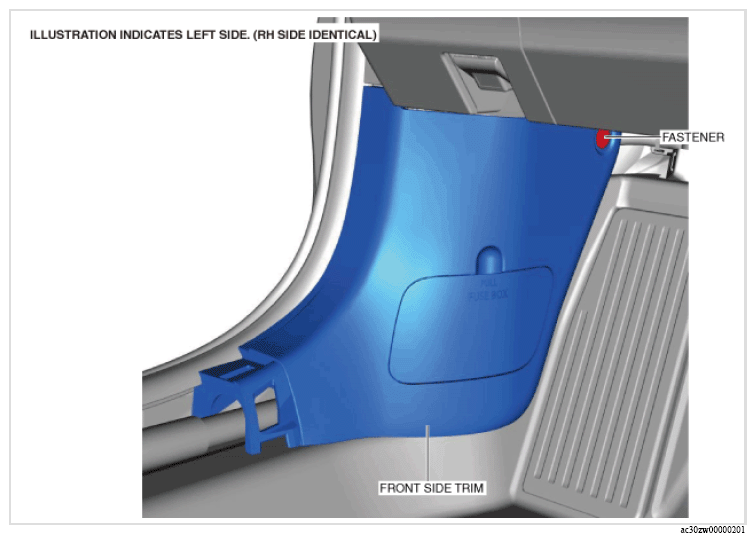

Remove the fastener.

Courtesy of MAZDA MOTORS CORP.

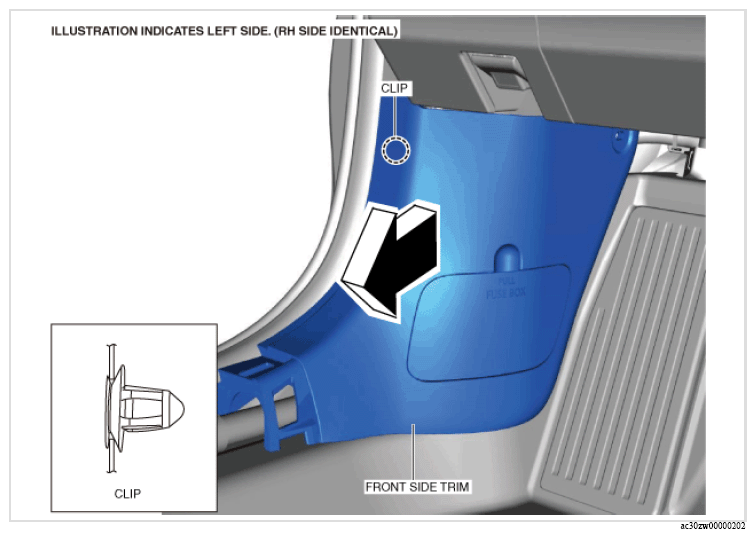

Pull the front side trim in the direction of the arrow shown in the figure and remove it while detaching the clip.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
