Cluster Switch Removal/Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side decoration panel (See DRIVER-SIDE DECORATION PANEL REMOVAL/INSTALLATION  .)
    4. Passenger-side decoration panel (See PASSENGER-SIDE DECORATION PANEL REMOVAL/INSTALLATION  .)
    5. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION  .)

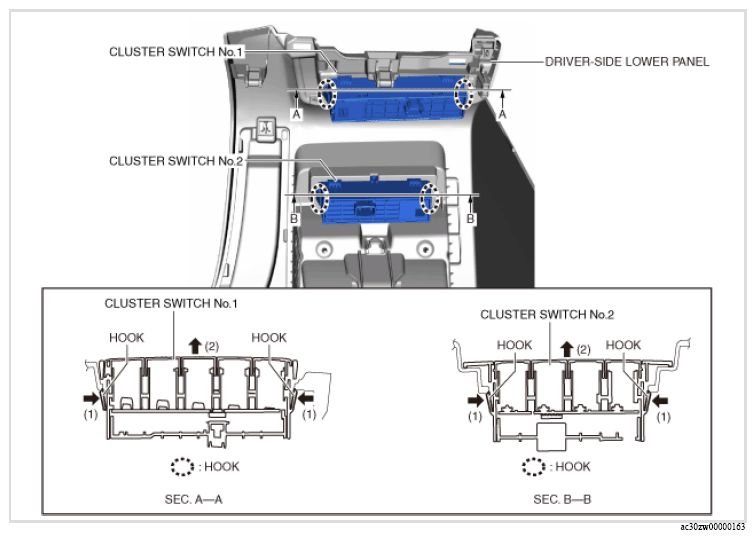

  3. With the hooks pressed in the direction of arrows (1) shown in the figure, push out the cluster switch No. 1 in the direction of arrow (2) and remove it from the driver-side lower panel.
    G16376811Courtesy of MAZDA MOTORS CORP.
  4. With the hooks pressed in the direction of arrows (1) shown in the figure, push out the cluster switch No. 2 in the direction of arrow (2) and remove it from the driver-side lower panel.
  5. Install in the reverse order of removal.
