Liftgate Removal/Installation: Notes

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Replacement part

Inner liftgate grommet
Quantity: 2
Location of use: Liftgate

Packing
Quantity: 1
Location of use: Stay damper

WARNING:

Removing the stay damper, liftgate hinge securing bolt, or liftgate without supporting the liftgate may cause the liftgate to fall off and injure you. When removing the stay damper, liftgate hinge, or liftgate, always use two persons to perform the work.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)

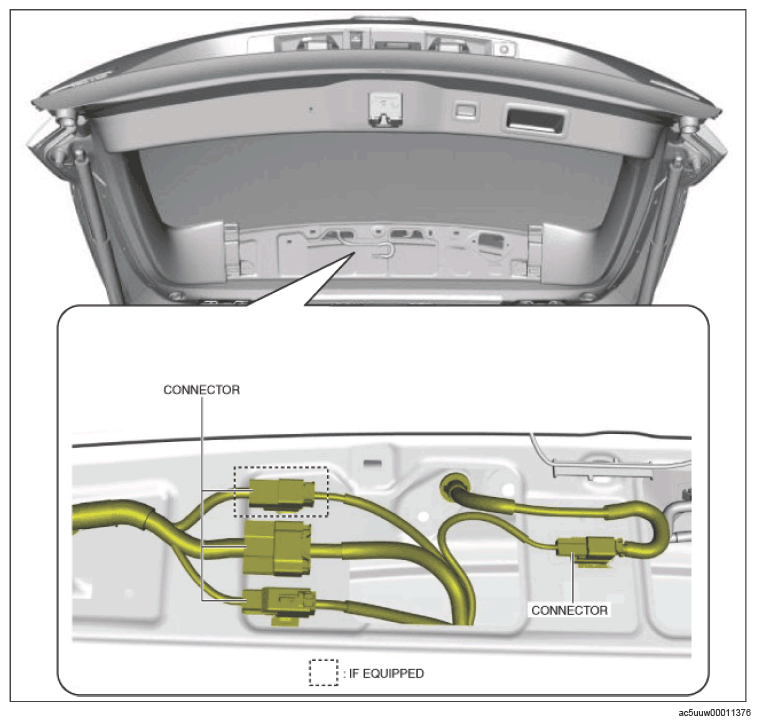

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.

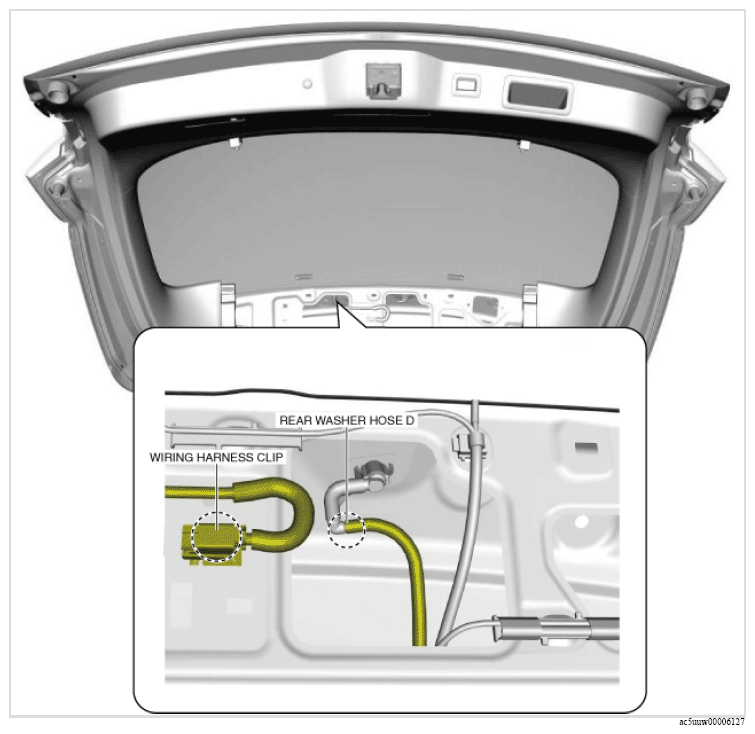

Remove the wiring harness clip.

Courtesy of MAZDA MOTORS CORP.
Disconnect rear washer hose D.

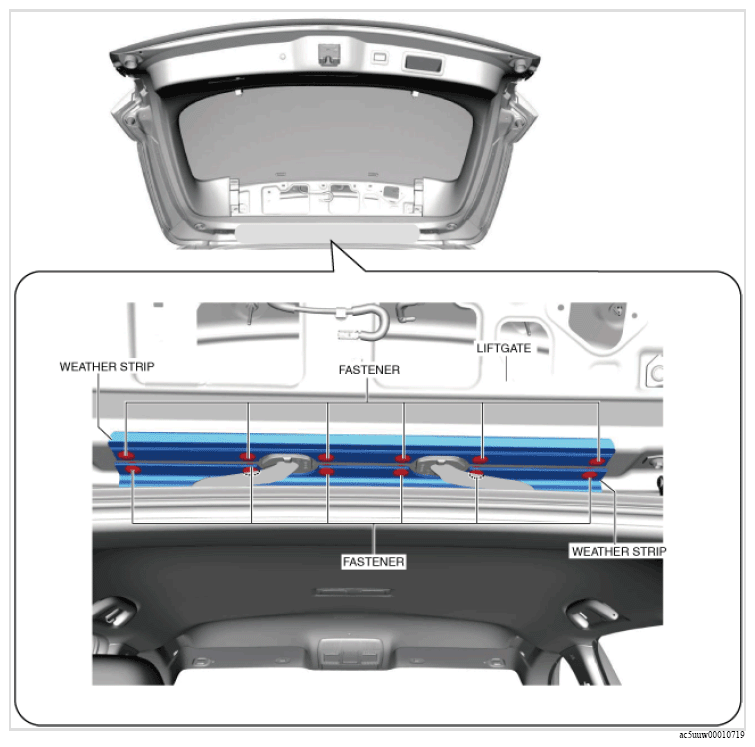

Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.
Remove the weatherstrips.

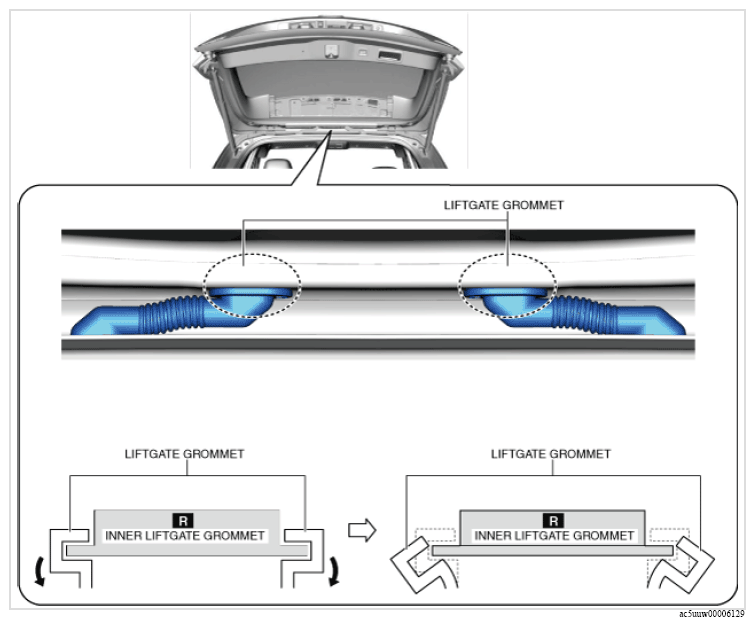

Move the liftgate grommet in the directions of the arrows shown in the figure below, and remove the liftgate grommet from the inner liftgate grommet.

Courtesy of MAZDA MOTORS CORP.

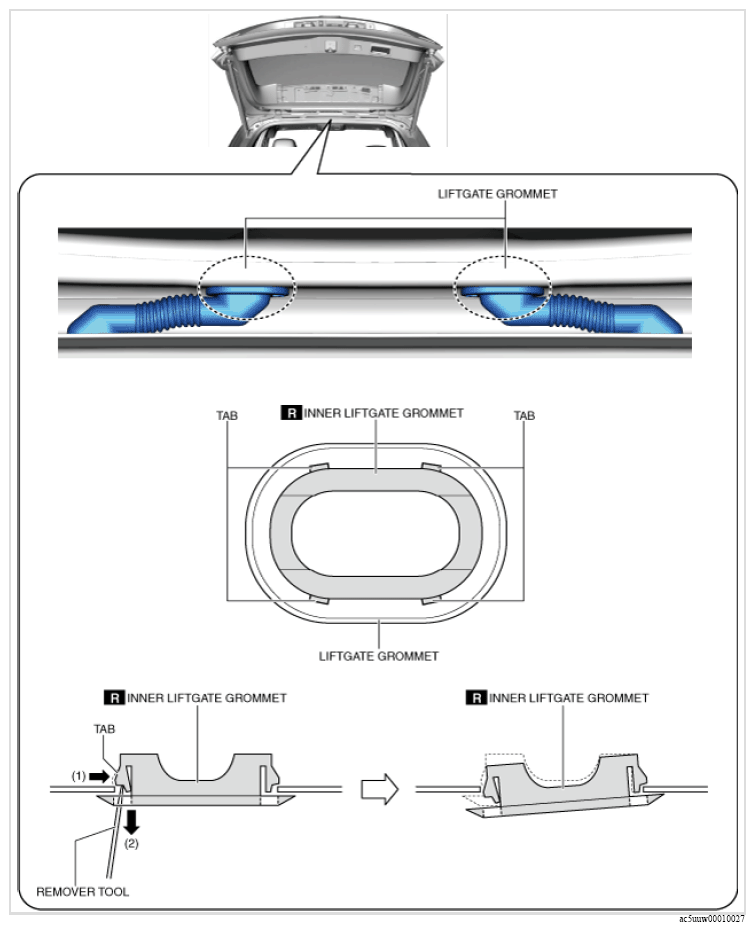

Using a remover tool, remove the inner liftgate grommet from the liftgate while pressing the tabs of the inner liftgate grommet in the order of arrows (1) and (2) shown in the figure below. (See Liftgate Grommet Installation Note .)

Courtesy of MAZDA MOTORS CORP.

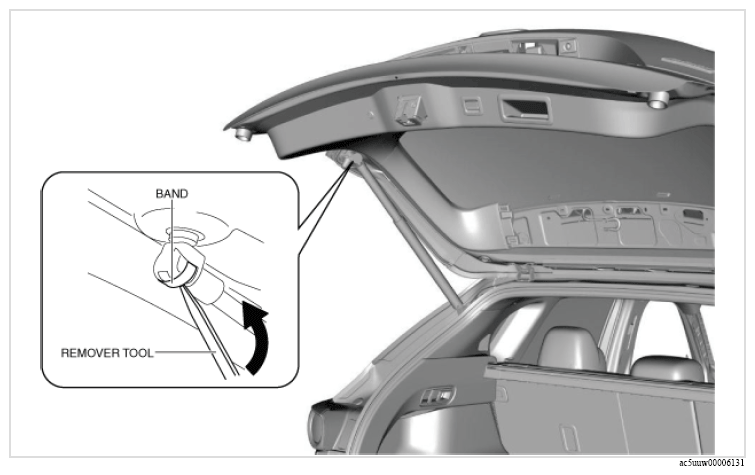

Using the remover tool, remove the stay damper securing band in the direction of the arrow shown in the figure below.

Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

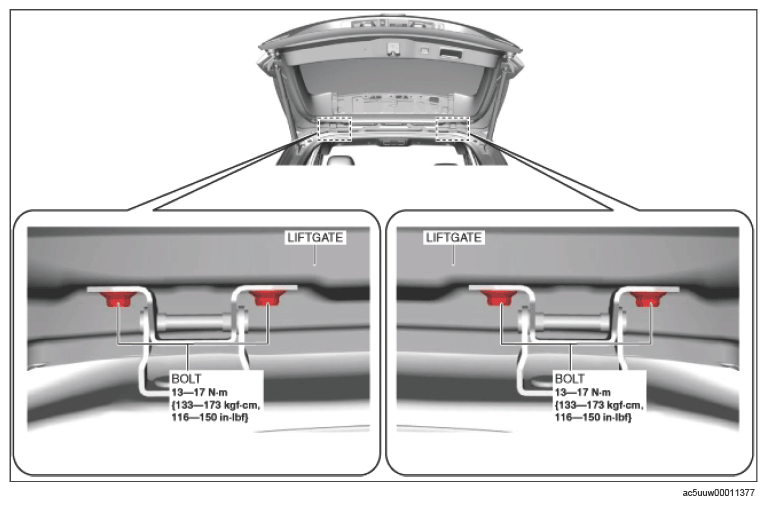

Fig 1: Liftgate And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the liftgate.
Remove the stud balls. (Only when replacing stud balls)

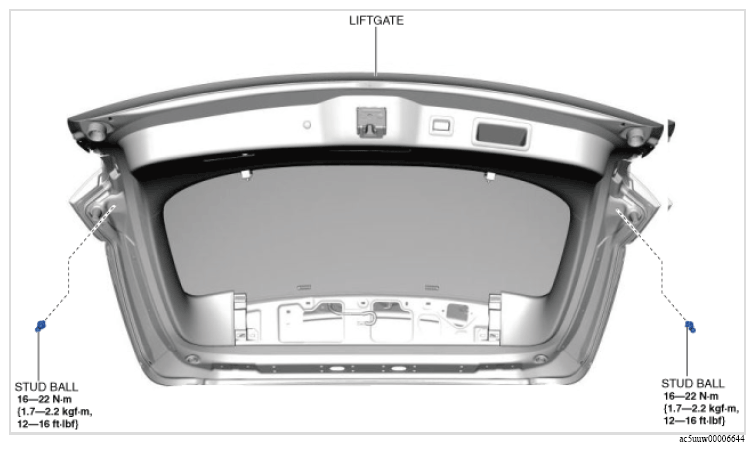

Fig 2: Liftgate And Stud Balls With Torque Specification
Courtesy of MAZDA MOTORS CORP.
When removing the stay damper, perform the following procedure (without power liftgate (PLG) system):
1. Remove the bolts.

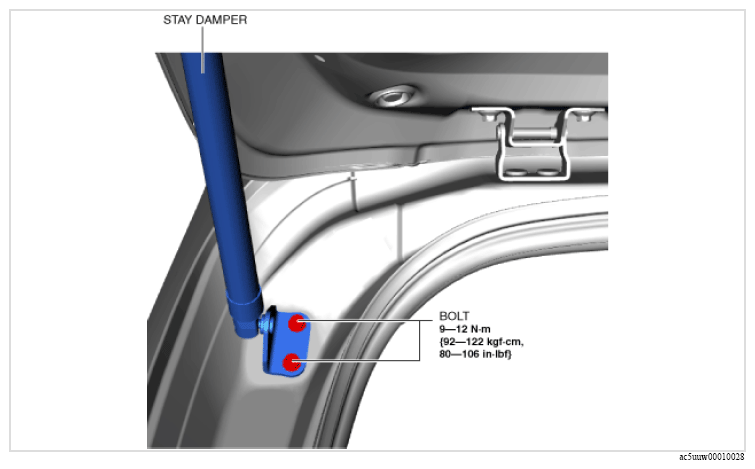

  Fig 3: Stay Damper And Bolts With Torque Specification
  Courtesy of MAZDA MOTORS CORP.
2. Remove the stay damper.
Install in the reverse order of removal. (See Stay Damper Installation Note .)
Adjust the liftgate. (See LIFTGATE ADJUSTMENT .)
Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360° view MONITOR SYSTEM AIMING .)
