Liftgate Grommet Installation Note

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Always replace a new inner liftgate grommet when installing the liftgate grommet. If the inner liftgate grommet is removed, the tab connection may weaken and it may cause water leakage.

Install the liftgate grommet using the following procedure:

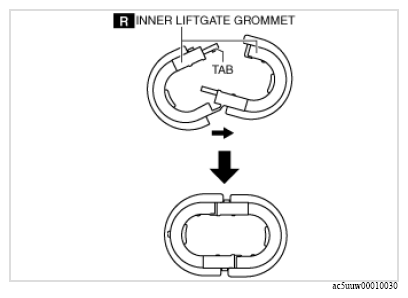

Engage a new inner liftgate grommet as shown in the figure below.

Courtesy of MAZDA MOTORS CORP.

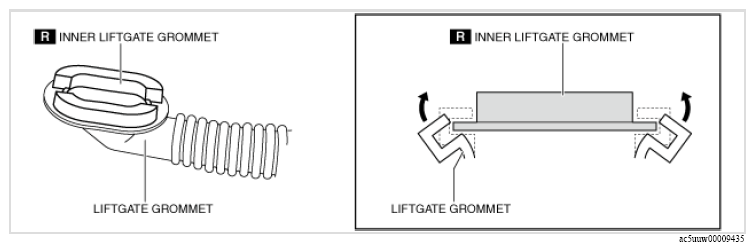

Install the inner liftgate grommet to the liftgate grommet.

CAUTION:

Install the liftgate grommet so that there is no gap between the liftgate grommet and the inner liftgate grommet. Otherwise, it may cause water leakage.

Courtesy of MAZDA MOTORS CORP.

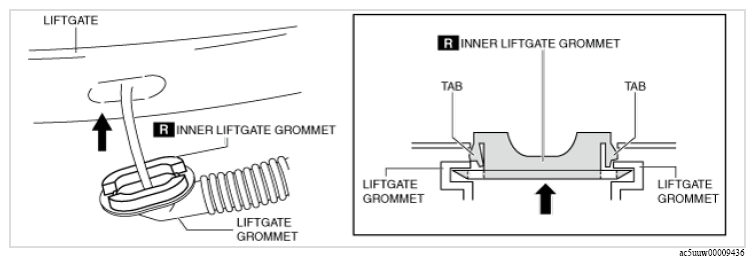

Move the inner liftgate grommet in the directions of the arrows shown in the figure below and engage the tabs of the inner liftgate grommet with the liftgate side.

CAUTION:

After installing the liftgate grommet, shake the inner liftgate grommet to verify that the tabs are securely engaged.

Courtesy of MAZDA MOTORS CORP.
